Tailgate Open Switch

Remove the tailgate trim.
(Refer to "TAILGATE TRIM ")
Disconnect the connector from the actuator.

Courtesy of KIA MOTORS AMERICA, INC.

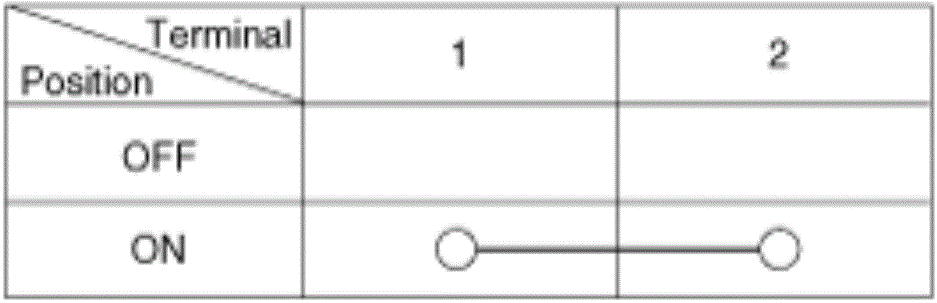

Check for continuity between the terminals in each switch position according to the table.

Courtesy of KIA MOTORS AMERICA, INC.
