Repair Procedures: Removal

CAUTION:

Put on gloves to protect your hands.

NOTE:

Use seat covers to avoid damaging any surfaces.

Remove the rear pillar trim.
(Refer to "REAR PILLAR TRIM ")

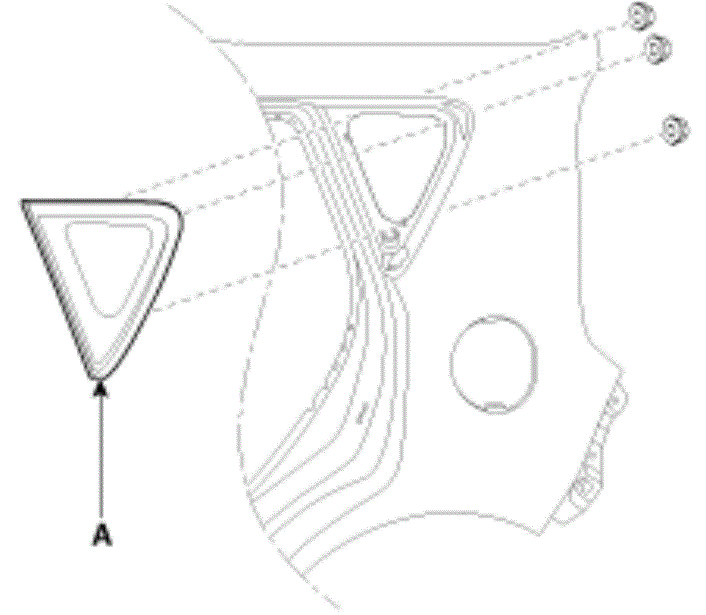

Loosen the quarter fixed glass (A) mounting nuts.
Tightening torque:

3.9 ~ 4.4 N.m (0.4 ~ 0.45 kgf.m, 2.9 ~ 3.3 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Cut out the quarter fixed glass sealant using the utility knife.
NOTE:
- Do not scrape down to the painted surface of the body as damaged paint may interfere with proper bonding.
Information
- Remove the rubber dam and fasteners from the body.
- Mask off surrounding surfaces before painting.
Remove the quarter fixed glass.
