Monitor DTC Status
- Connect KDS to Data Link Connector (DLC).
- Ignition "ON"
- Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

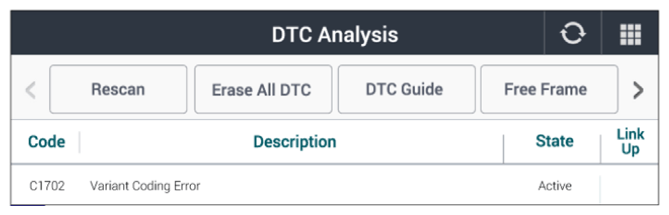

Figure) Diagnostic Trouble Code (DTC) is shown in the illustration above.
- Is DTC status displayed as Present?
YES
- Go to "MONITOR KDS DATA " procedure.
NO
- Fault might be intermittent caused by poor contact in the sensor's and/or ECU's connector or was repaired and ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
