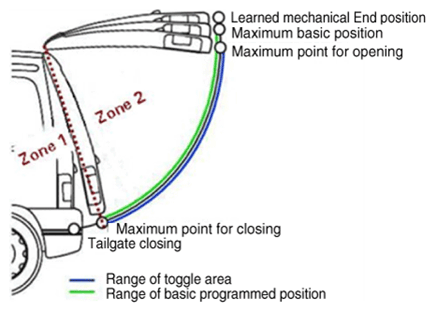

Learning/Calculation/Program Location
- Maximum Point for Opening
The movement of opening direction beyond this position will make the liftgate to reach the maximum basic position, and overload the mechanical system (hinge).
So, opening movement beyond this position is impossible.
But, if the movement started from lower position, the liftgate will move beyond this point.
- Learned Mechanical End Position
Mechanical End Position is the mechanical limited position, and is regarded as 100% opened.
This position is being learned in the process of the first opening of the liftgate.
After the learning, the liftgate will not go beyond the maximum basic position that is defined as soft stop.
All of the positions will be defined by parameters that are designated by ECU.
