Circuit Inspection

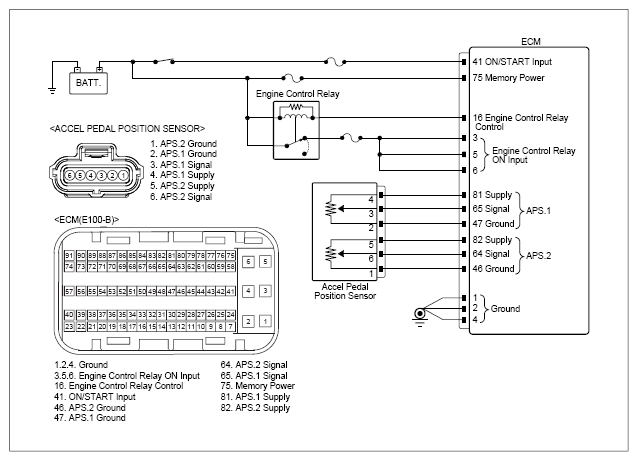

G12784238Courtesy of KIA MOTORS AMERICA, INC.
APS1 Circuit Inspection
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect APS connector.
  3. Ignition "ON".
 APS connector 4 (Supply) Chassis ground - Approx. 5V
  1. Ignition "OFF".
  2. Disconnect APS connector.
 APS connector 2 (Ground) Chassis ground - Below 1Ω
  1. Ignition "OFF"
  2. Disconnect APS and ECM connector.
 APS connector 3 (Signal) ECM connector 65 (Signal) Below 1Ω
  1. Ignition "OFF"
  2. Disconnect APS and connector.
 APS connector 3 (Signal) Chassis ground - ∞ (Infinite)Ω
APS2 Circuit Inspection
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect APS connector.
  3. Ignition "ON".
 APS connector 5 (Supply) Chassis ground - Approx. 5V
  1. Ignition "OFF".
  2. Disconnect APS connector.
 APS connector 1 (Ground) Chassis ground - Below 1Ω
  1. Ignition "OFF"
  2. Disconnect APS and ECM connector.
 APS connector 6 (Signal) ECM connector 64 (Signal) Below 1Ω
  1. Ignition "OFF"
  2. Disconnect APS and connector.
 APS connector 6 (Signal) Chassis ground - ∞ (Infinite)Ω

Good

No Good
