Smart Key Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

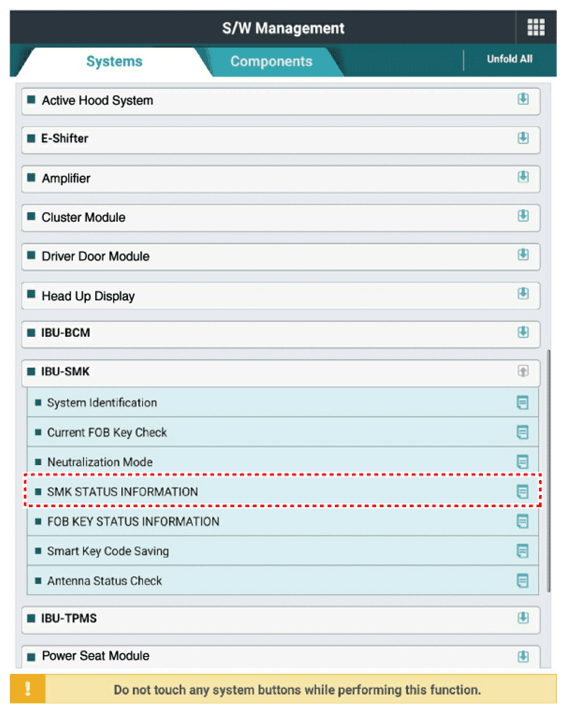

    G12798872Courtesy of KIA MOTORS AMERICA, INC.

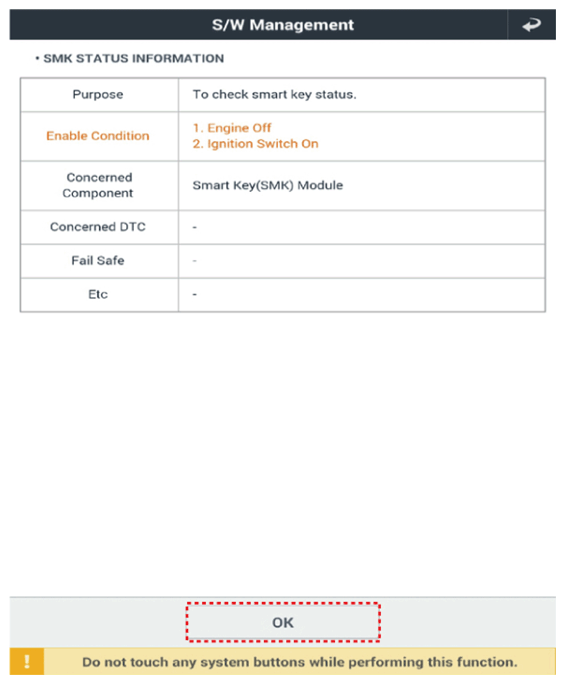

    G12798873Courtesy of KIA MOTORS AMERICA, INC.

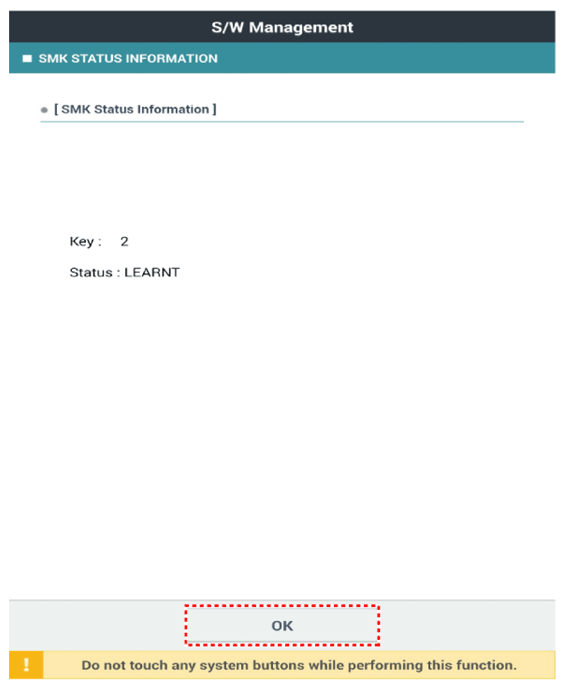

    G12798874Courtesy of KIA MOTORS AMERICA, INC.
