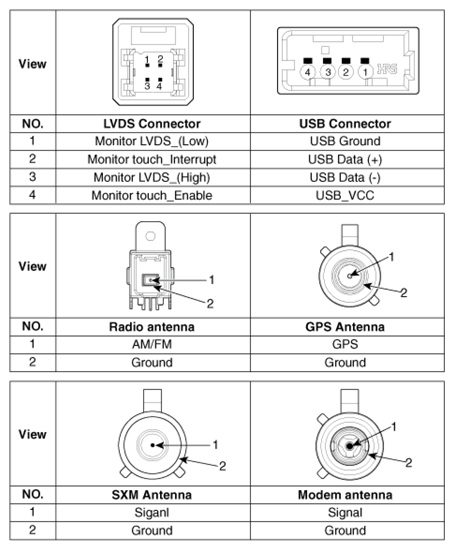

Connector Pin Information

No.	Connector A	Connector B	Connector C	Connector D
1	Rear door left speaker (+)	-	-	Ground
2	Rear door left speaker (-)	MIC (+)	-	-
3	-	-	-	Hazard switch input
4	-	-	-	Passenger seat belt reminder
5	-	Antenna power	-	-
6	RVM Camera: power	Illumination (+)	-	PAB Off
6	SVM Camera: -	Illumination (+)	-	PAB Off
7	RVM Camera: Video	Multimedia-CAN (High)	-	IGN1
7	SVM Camera: Video (Y)	Multimedia-CAN (High)	-	IGN1
8	RVM Camera: -	Monitor keyboard_Enable	-	PAB On
8	SVM Camera: Video (C)	Monitor keyboard_Enable	-	PAB On
9	-	-	-	Rear left seat belt reminder
10	AUX Right input	Battery (+)	-	Rear center seat belt reminder
11	AUX Detect	Battery (+)	-	Rear right seat belt reminder
12	Steering wheel remote controller	Ground	-	Hazard switch output
13	Front door left speaker (+)	Ground	-
14	Front door left speaker (-)	Mic Ground	-
15	Front door right speaker (-)	MIC (-)	-
16	Front door right speaker (+)	RVM Camera: -	-
16	Front door right speaker (+)	SVM Camera: Detect	-
17	-	-	-
18	-	-	-
19	-	Illumination (-)	-
20	RVM Camera: Power ground	Multmedia-CAN (Low)	-
20	SVM Camera: -	Multmedia-CAN (Low)	-
21	RVM Camera: Video ground	Display_Mute	-
21	SVM Camera: Video (Y) ground	Display_Mute	-
22	RVM Camera: -	ACC	-
22	SVM Camera: Video (C) ground	ACC	-
23	-	-	-
24	AUX Left input	LCD Battery	-
25	AUX Ground	-	-
26	Steering wheel remote controller (Ground)	-	-
27	Rear door right speaker (-)	-	-
28	Rear door right speaker (+)	-	-
29	-	-	-
30	-	-	-
31	-	-	-
32	RVM Camera: -	-	-
32	SVM Camera: Detect	-	-
33	RVM Camera: -	IGN1	-
33	SVM Camera: Video (Y) shield	IGN1	-
34	RVM Camera: -	-	-
34	SVM Camera: Video (C) shield	-	-
35	-	LCD Ground	-
36	-		-
37	-		-
38	Vehicle Speed		-
