FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

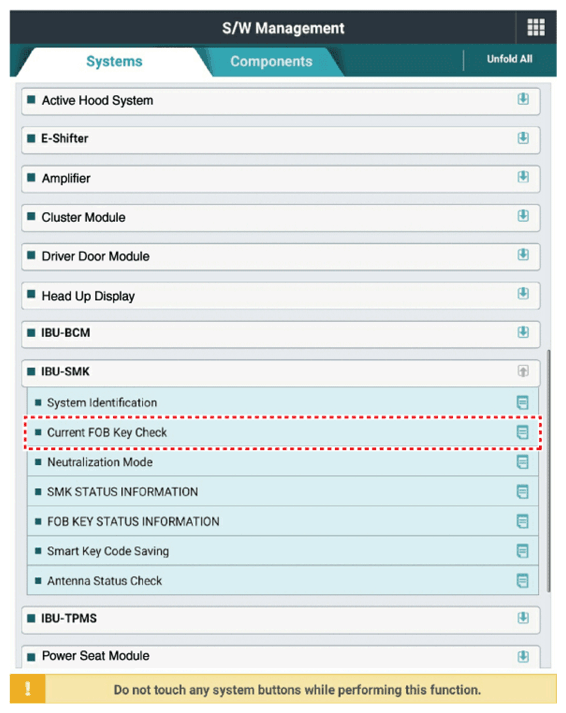

    G12798869Courtesy of KIA MOTORS AMERICA, INC.

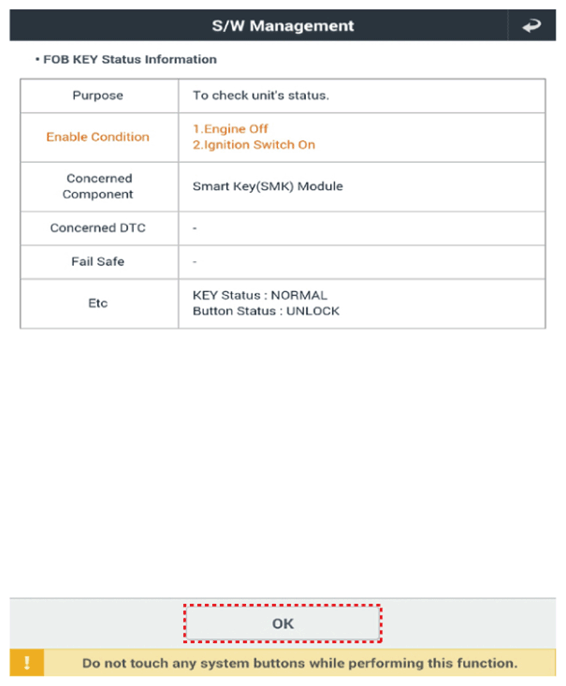

    G12798870Courtesy of KIA MOTORS AMERICA, INC.

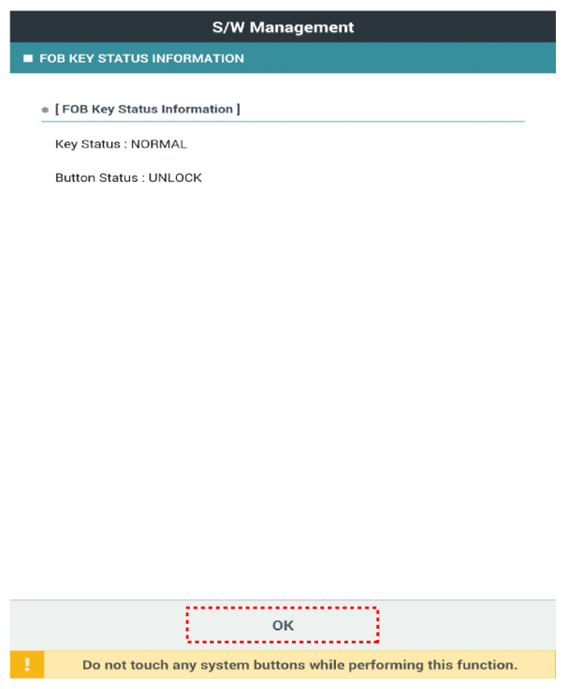

    G12798871Courtesy of KIA MOTORS AMERICA, INC.
