Liftgate Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear transverse trim.

    (Refer to Body - "Rear Transverse Trim")

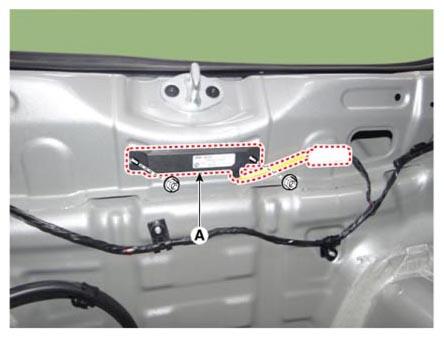

  3. Remove the liftgate antenna (A) after disconnecting the connector and loosening the mounting nuts.
    G12798841Courtesy of KIA MOTORS AMERICA, INC.
