Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference

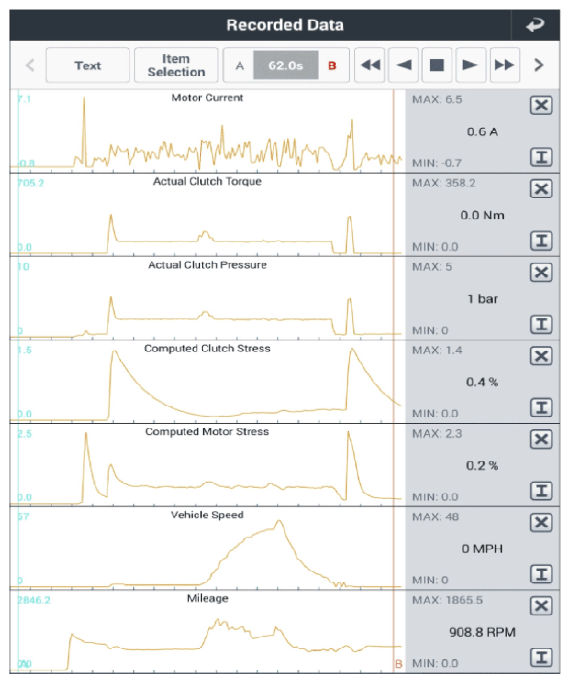

Ignition "ON".	Connect KDS to Data Link Connector (DLC). Monitor "Park Release Motor Location of Current data" with KDS.	Figure below

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in 4WD ECM's connector or was repaired and 4WD ECM Memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Go to "COMPONENT INSPECTION " procedure.

No Good
