Repair Procedures: Removal

  1. Turn the ignition switch OFF.

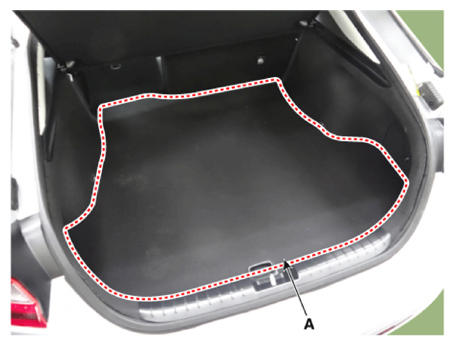

  2. Remove the luggage covering (A).
    G12791999Courtesy of KIA MOTORS AMERICA, INC.

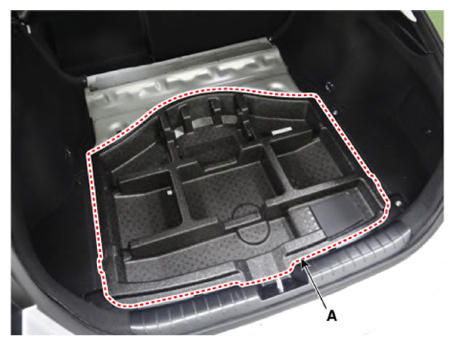

  3. Remove the luggage center tray (A).
    G12792000Courtesy of KIA MOTORS AMERICA, INC.

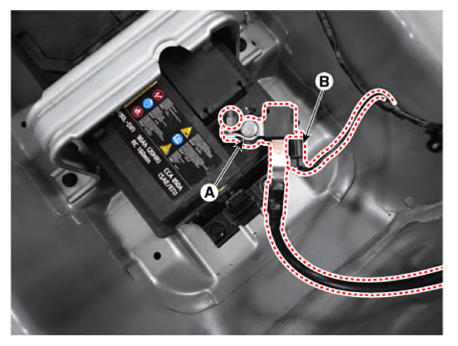

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
    G12792001Courtesy of KIA MOTORS AMERICA, INC.

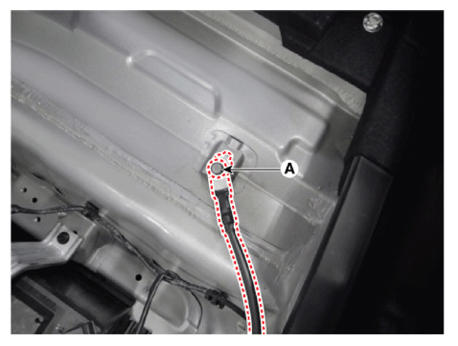

  6. Remove the battery sensor by loosening the mounting bolts (A).

    Battery sensor cable mounting bolt:

    27.0 - 33.0 N.m (2.7 - 3.4 kgf.m, 19.9 - 24.3 lb.ft)

    G12792002Courtesy of KIA MOTORS AMERICA, INC.
