Power Trunk Lid Module & Drive Unit

  1. Disconnect the negative battery terminal.
  2. Remove the left luggage side trim after opening the trunk.

    (Refer to Body - "TRUNK TRIM ")

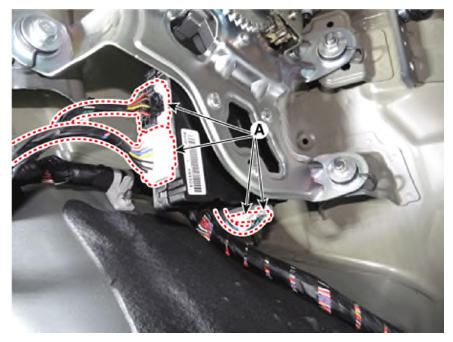

  3. Disconnect the drive unit connectors (A).
    G13405465Courtesy of KIA MOTORS AMERICA, INC.

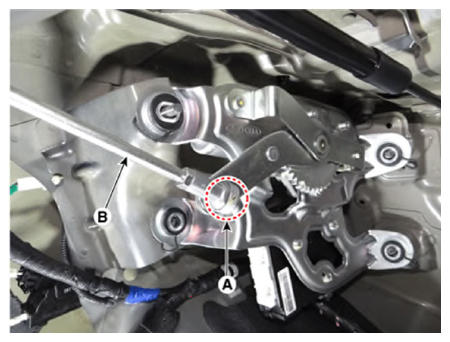

  4. Separate the power trunk lid module push rod pin (A) and then remove the power trunk lid module connecting rod (B).
    G13405466Courtesy of KIA MOTORS AMERICA, INC.

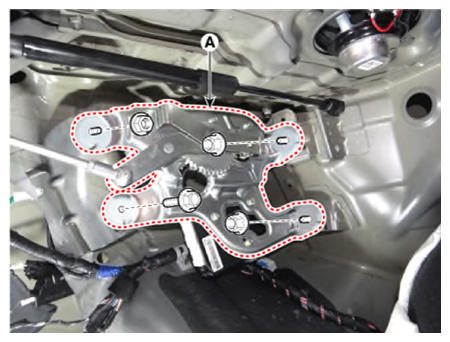

  5. Remove the power trunk lid module & drive unit (A) after loosening the mounting bolt and nuts.
    G13405467Courtesy of KIA MOTORS AMERICA, INC.
