Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE: Align the reference point at alignment point (A) and align front view camera.

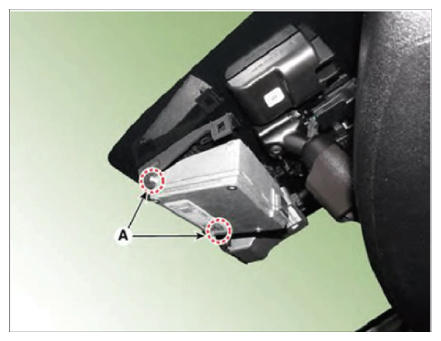

    G13405833Courtesy of KIA MOTORS AMERICA, INC.

    Front view camera is fully assembled when a single click sound is heard.

  2. Connect the connector and front view camera cover.
  3. When if replacing the front view camera with a new one, perform the "Variant Coding" procedure by using the KDS.

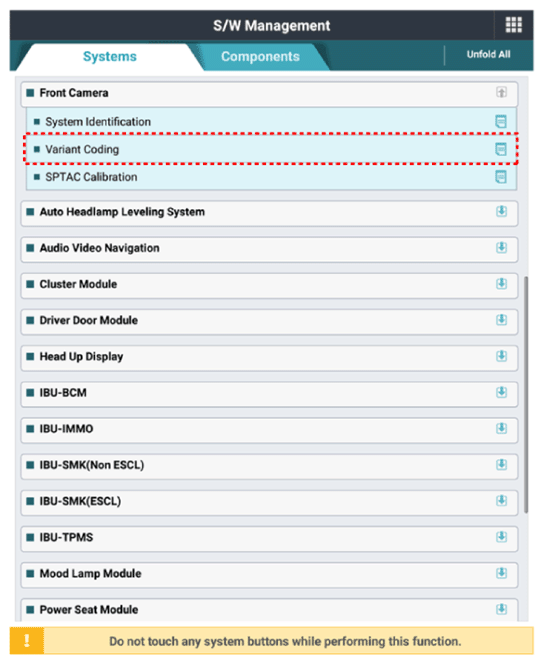

    G13405834Courtesy of KIA MOTORS AMERICA, INC.
  4. Perform the front view camera unit calibration.

    (Refer to Front View Camera Unit - "ADJUSTMENT ")
