Diagnostic Procedure By Using Diagnostic Device

Perform diagnostic procedure by using diagnostic device as shown below:

Connect self-diagnosis connector (16pins) located under the driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.

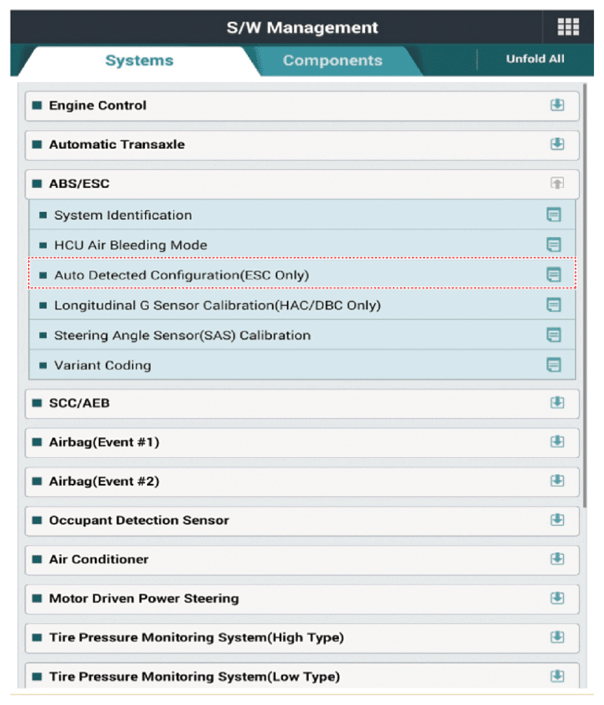

Select the "vehicle model" and "ABS/ESP" on KDS vehicle selection screen, then select OK.

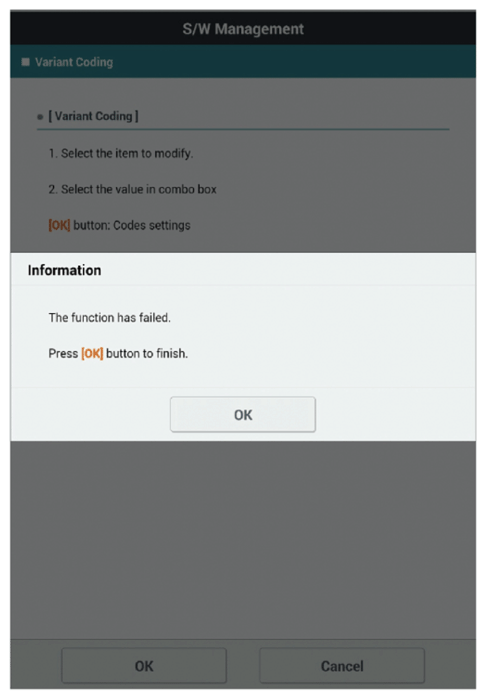

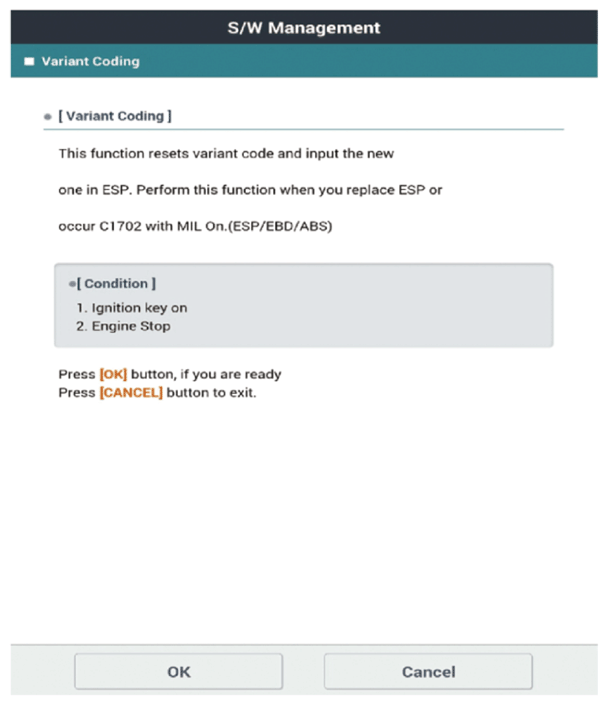

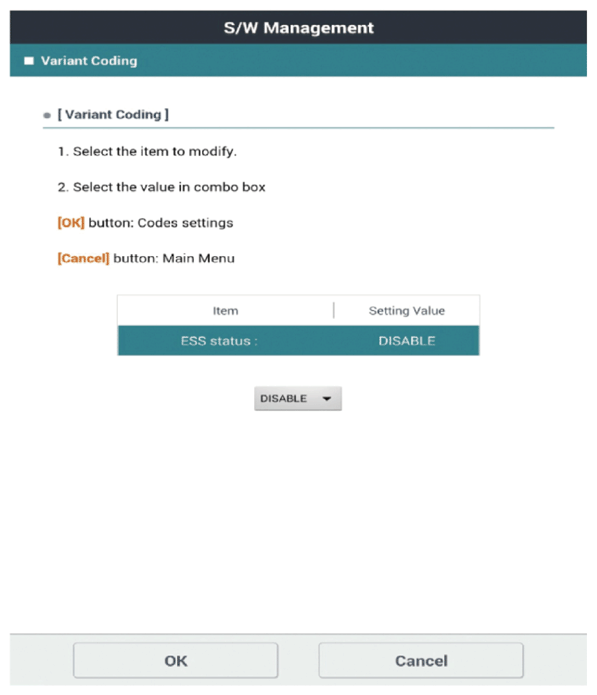

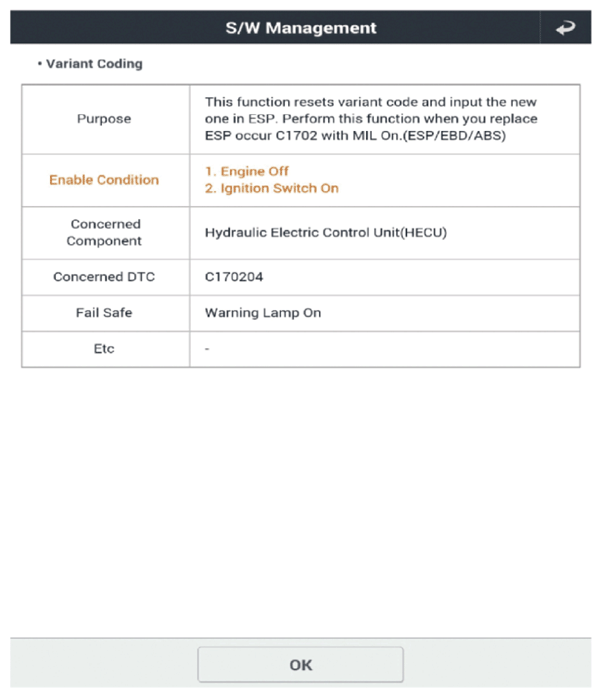

[Variant Coding]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

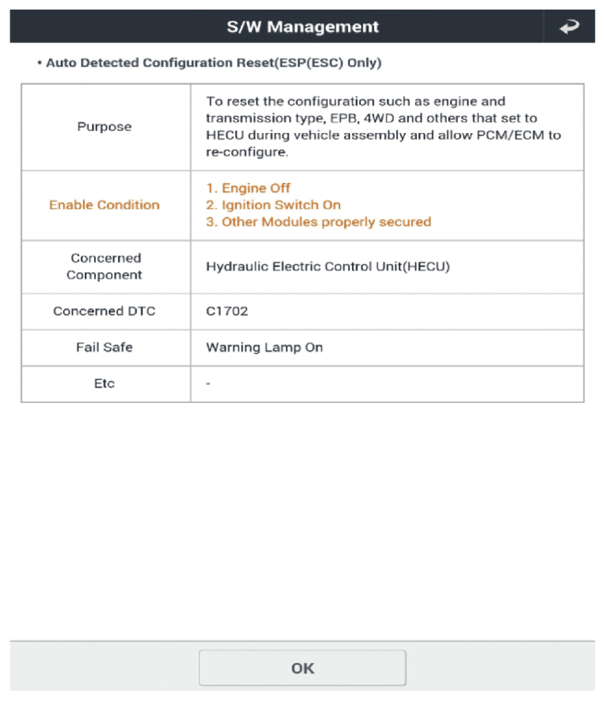

[Auto Detected Sensor Calibration]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

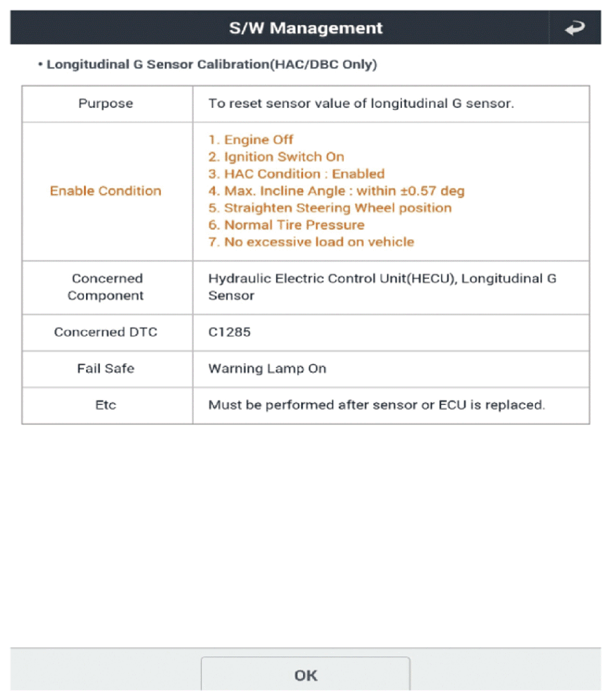

[Longitudinal G Sensor Calibration]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
