Repair Procedures: Installation
NOTE:
- Put the vehicle on the level ground.
- Take out heavy luggage from the vehicles' seats or trunk.
- Set all tires according to the specified pressure.
- Check wheel alignment.
- Check that the front surface of the front radar is clean.

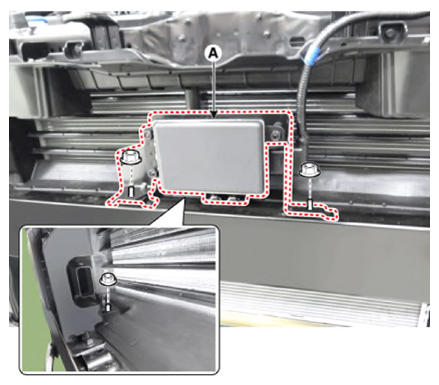

- Install the front radar (A) by tightening the nuts.

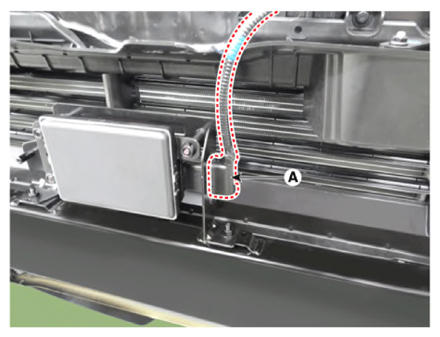

- Connect the front radar connector (A).
- Check and align the front radar mounting angle.

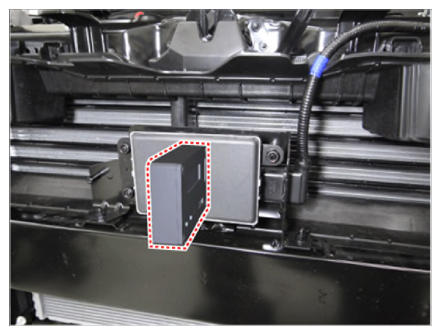

- Check the front radar vertical angle by using the vertical protractor (tiltmeter).NOTE:
- Make sure to perform zero setting before using vertical protractor. (perform this procedure periodically)
- Be careful with +/- readings when finding true vertical using vertical protractor.

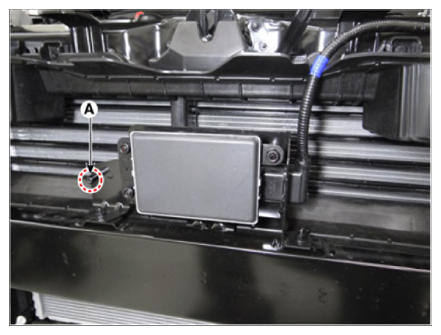

- Adjust to "target vertical angle" by turning adjusting screw of front radar.
Vertical angle :0 ± 0.4°
- turning clockwise: adjusting (+) angle
- turning counterclockwise: adjusting (-) angle
NOTE:- Adjustment of the bracket can be applied using manual pressure.
- Must recheck with vertical protractor if vertical angle is right after adjusting.
- Check the front radar vertical angle by using the vertical protractor (tiltmeter).
- Install the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

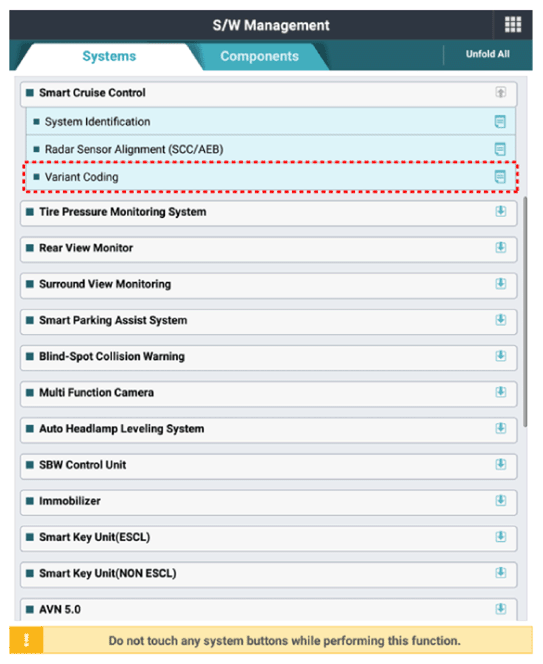

- If replaced the front radar with a new one, perform variant coding procedure by using the KDS.
- Perform the front radar alignment procedure by using the KDS.
(Refer to Front Radar Unit - "ADJUSTMENT ")
