Engine Control System Diagnosis (4 Of 6)
>>
DTC P053F-00: Cold Start Fuel Pressure Performance
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

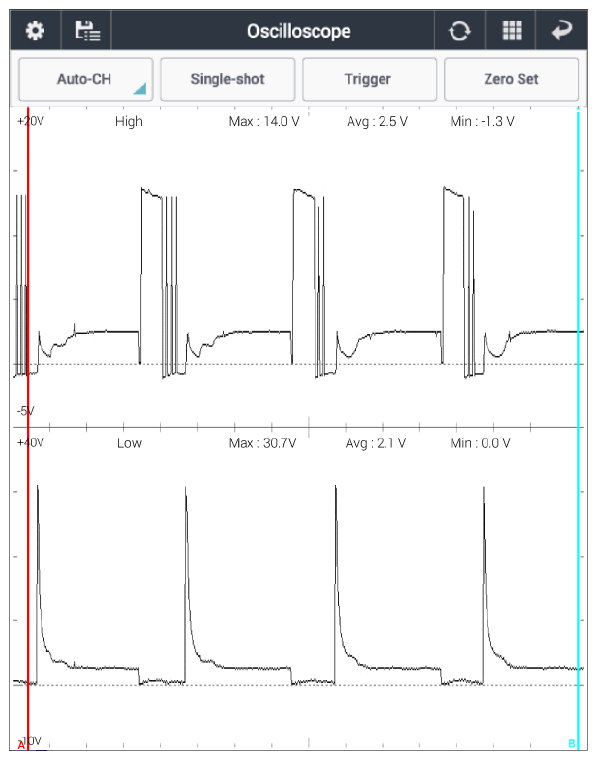

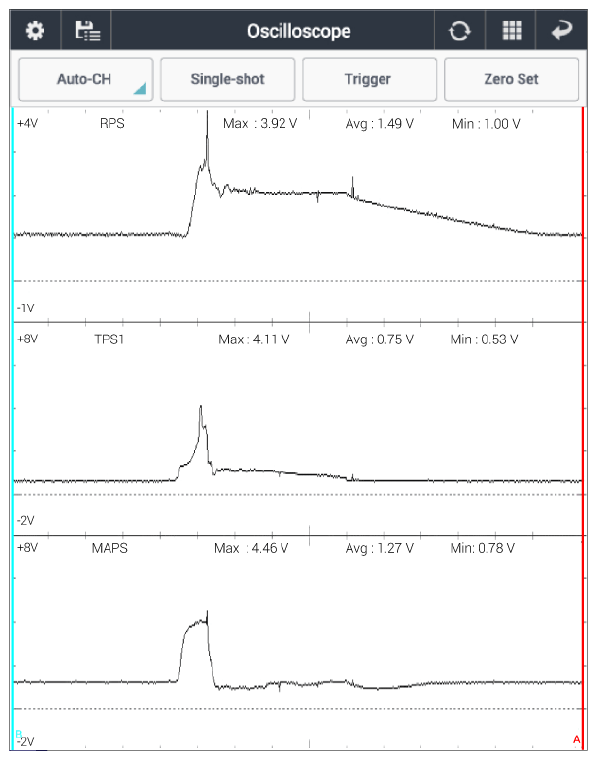

Signal Waveform & Data
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
