Repair Procedures: Removal

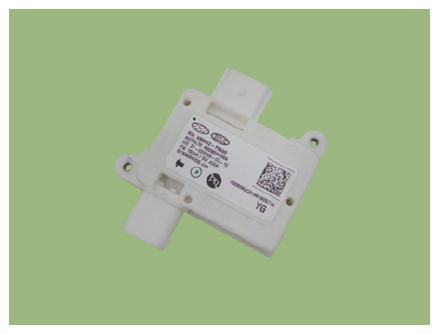

Occupant Classification Sensor (OCS) Unit

1. Disconnect the negative battery terminal.
   WARNING: After disconnecting the cables, wait at least 30 seconds.
2. Remove the passenger front seat assembly.

   (Refer to Body (Interior and Exterior) - "FRONT SEAT ASSEMBLY ")

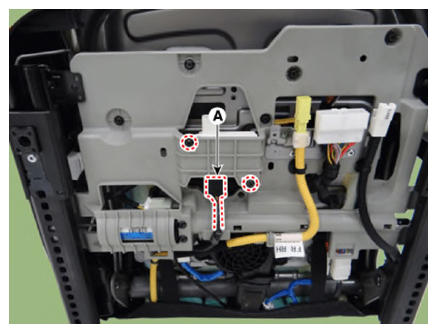

3. Disconnect the occupant classification sensor unit connector (A).
4. Remove the occupant classification sensor unit by loosening the mounting screws.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.
