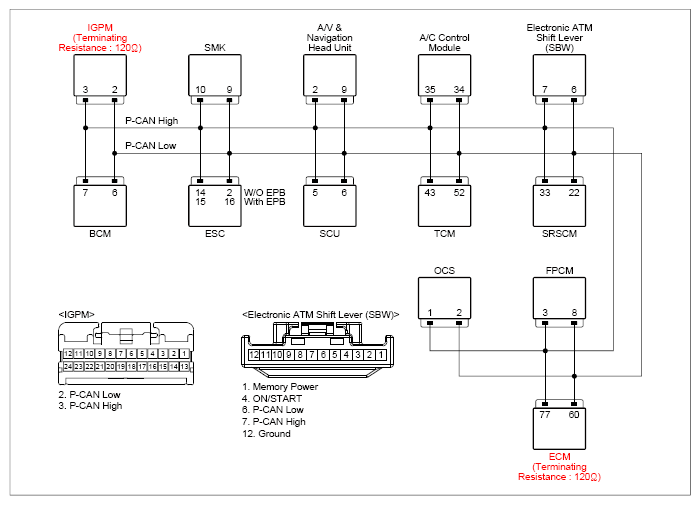

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

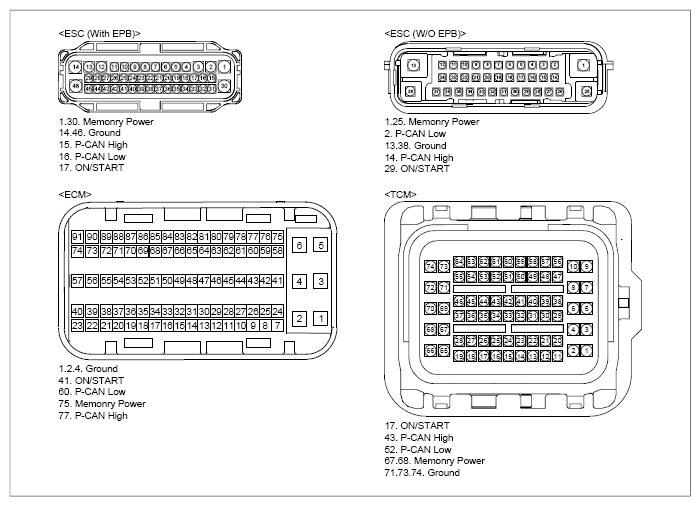

HECU connector (With EPB) | 15 (P-CAN high) | HECU connector (With EPB) | 16 (P-CAN low) | Approx. 60Ω |
| HECU connector (W/O EPB) | 14 (P-CAN high) | HECU connector (W/O EPB) | 2 (P-CAN low) | Approx. 60Ω | |
|
HECU connector (With EPB) | 1, 30 (Memory power) | Chassis ground | - | B+ |
| HECU connector (W/O EPB) | 1, 25 (Memory power) | Chassis ground | - | B+ | |
| HECU connector (With EPB) | 17 (ON/START) | Chassis ground | - | B+ | |
| HECU connector (W/O EPB) | 29 (ON/START) | Chassis ground | - | B+ | |
|
HECU connector (With EPB) | 14, 46 (ground) | Chassis ground | - | Approx. below 1Ω |
| HECU connector (W/O EPB) | 13, 38 (ground) | Chassis ground | - | Approx. below 1Ω | |
|

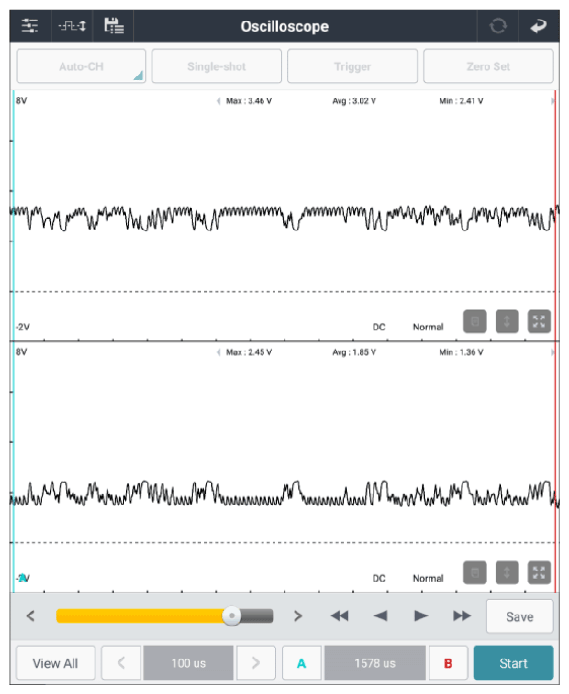

HECU connector (With EPB) | 15 (P-CAN high) | Chassis ground | - | Fig.1 |
| HECU connector (With EPB) | 16 (P-CAN low) | Chassis ground | - | ||
| HECU connector (W/O EPB) | 14 (P-CAN high) | Chassis ground | - | Fig.1 | |
| HECU connector (W/O EPB) | 2 (P-CAN low) | Chassis ground | - | ||
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
* If a module is replaced, perform the relevant "Vehicle S/W Management" procedure.
