Removal And Installation

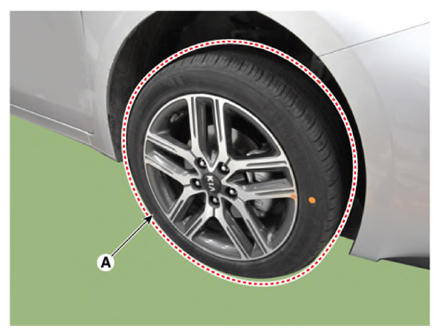

Remove the front wheel and tire (A).
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the hub bolts when removing the front wheel and tire.

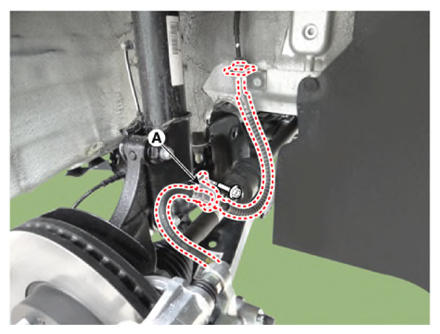

Disconnect the brake hose bracket (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

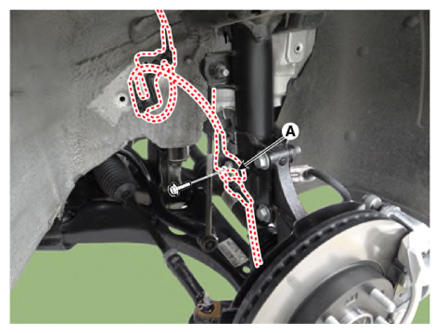

Disconnect the wheel speed sensor bracket (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

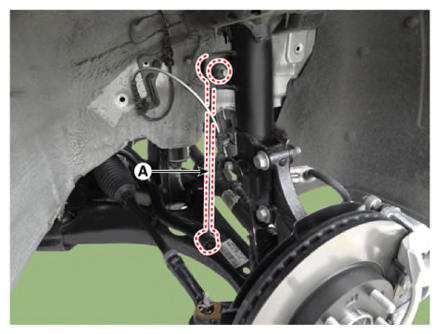

Loosen the nut and then disconnect the stabilizer bar link (A).
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When loosening the nut, fix the outer hexagon of stabilizer bar link.
- Be careful not to damage the stabilizer link boots.

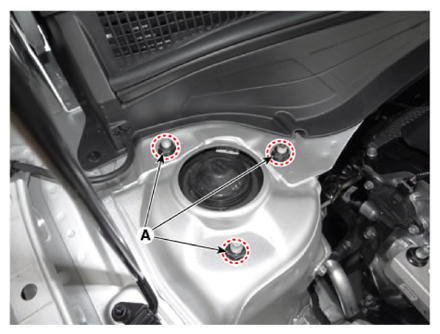

Loosen the front strut upper mounting nuts (A).
Tightening torque:

53.9 - 73.5 N.m (5.5 - 7.5 kgf.m, 39.8 - 54.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

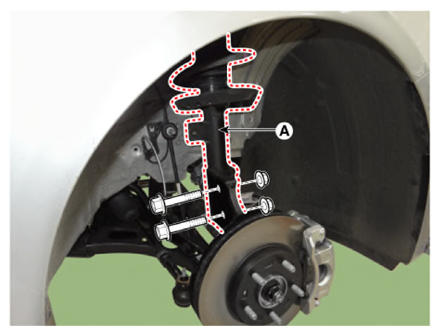

Loosen the bolts and nuts and then remove the front strut assembly (A).
Tightening torque:

156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
