Repair Procedures: Replacement

Open the cover and loosen the front seat mounting bolts.

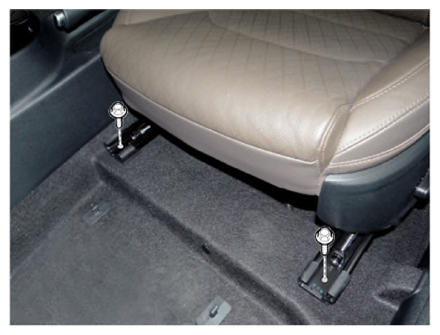

[Front]

Tightening torque:

34.3 - 53.9 N.m (3.5 - 5.5 Kgf.m, 25.3 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

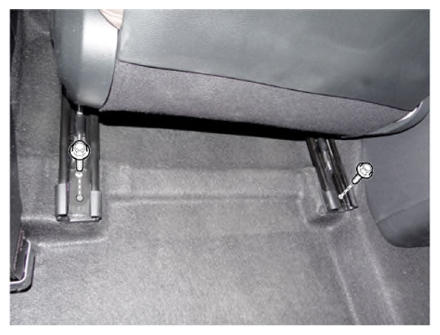

[Rear]

Tightening torque:

34.3 - 53.9 N.m (3.5 - 5.5 Kgf.m, 25.3 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

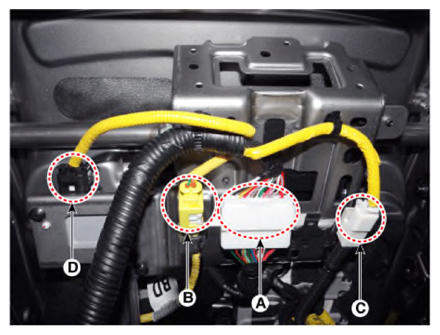

Disconnect the main connector (A), front seat belt buckle connector (C), airbag connector (B), seat belt reminder connector (D).
[Driver's]

Courtesy of KIA MOTORS AMERICA, INC.

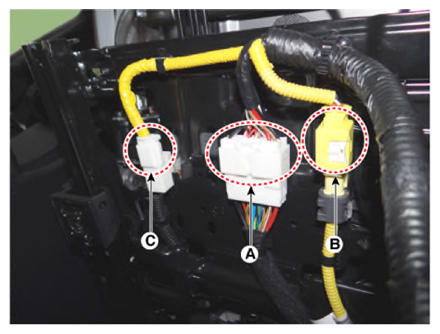

[Passenger's]

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information

The installation procedures of seat mounting bolts
- Push the seat to the rear end of slides and initially tighten the front mounting bolts.
- Push the seat to the front end of slides and completely tighten the rear mounting bolts.
- Send the seat to the rear end again to completely tighten the front mounting bolts.
- Check the seat for smooth movement.
- For the non - automatic slide seats, check the seats are fixed at each designated fixing position.
