Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

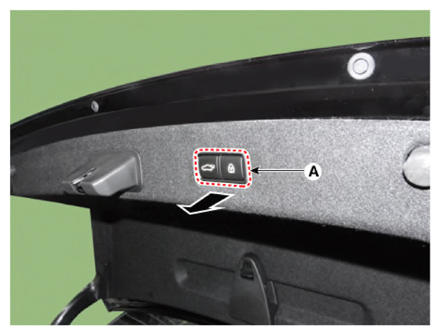

  2. Remove the power trunk inner switch (A).
    G13128974Courtesy of KIA MOTORS AMERICA, INC.

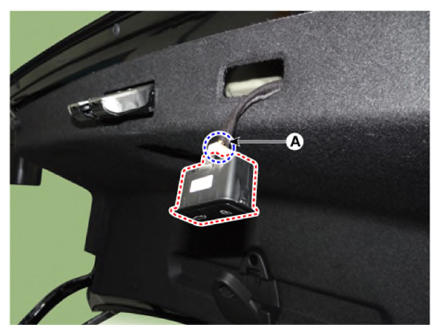

  3. Disconnect the connector (A) from the power trunk inner switch.
G13128975Courtesy of KIA MOTORS AMERICA, INC.
