Component Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

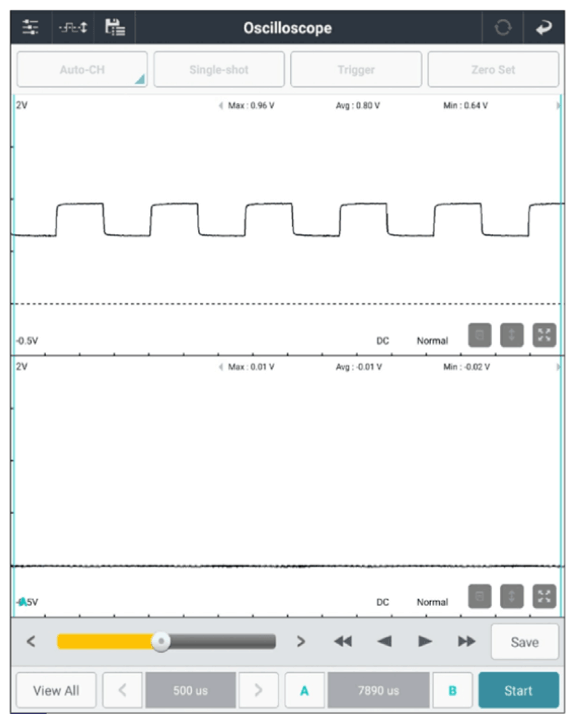

HO2S#3 (B1/S2) connector | 1 (sensor signal) | Chassis ground | - | Figure below |
| HO2S#3 (B1/S2) connector | 2 (sensor ground) | Chassis ground | - | ||
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the HO2S (B1/S2) and go to "VERIFICATION OF REPAIR " procedure.
