Steering Wheel Play Inspection

  1. Turn the steering wheel so that the front wheels are facing straight ahead.

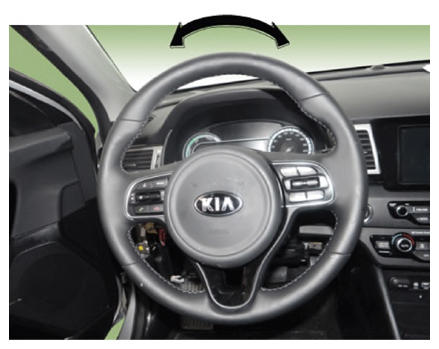

  2. Measure the distance that the steering wheel can be turned without moving the front wheels.

    Standard value:  0 - 30mm (1.1811 in.) or less

    G13349541Courtesy of KIA MOTORS AMERICA, INC.
  3. If the play exceeds standard value, inspect the steering column, shaft, and linkages.
