Repair Procedures: Installation
- Check that the shift lever is placed in the "N" position.

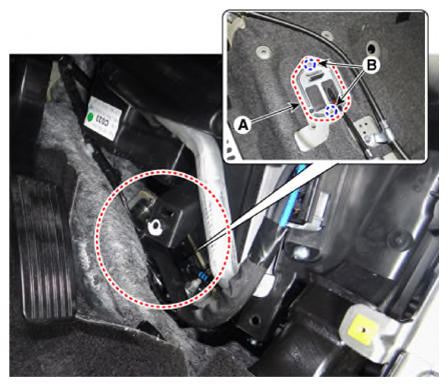

- Install the shift cable retainer (A) by tightening nuts (B).
Tightening torque:
11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)
- Install the shift cable.

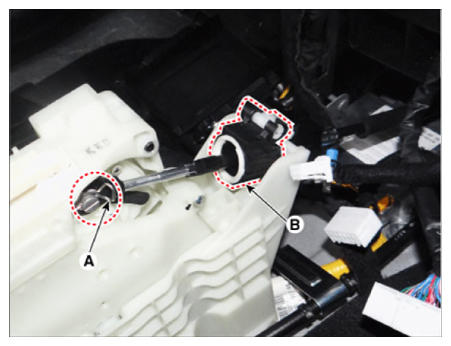

- Install the cable socket (A).

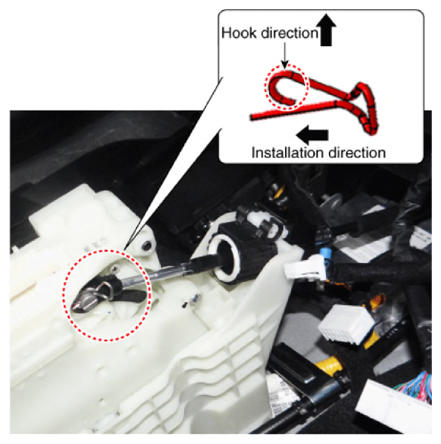

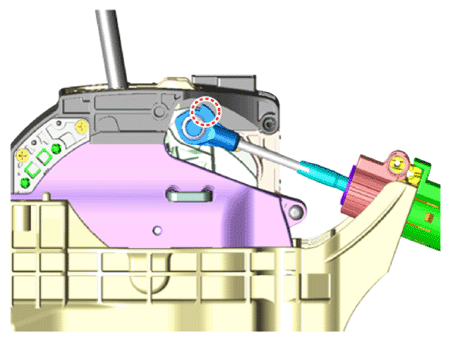

- Install the shift cable to the lever pin and then insert the snap pin (A).
NOTE: - Install the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

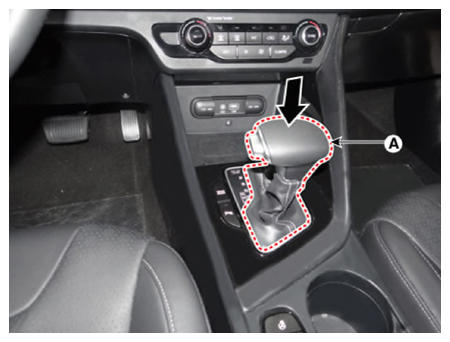

- Install the knob (A) by pressing it in the direction of arrow after installing the boots to the console upper cover.

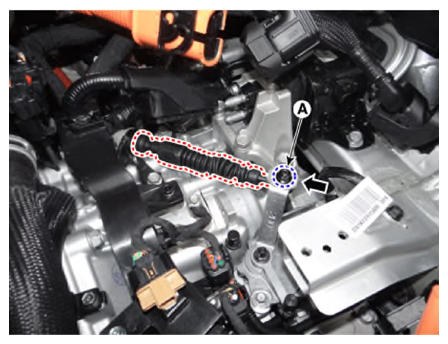

- Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

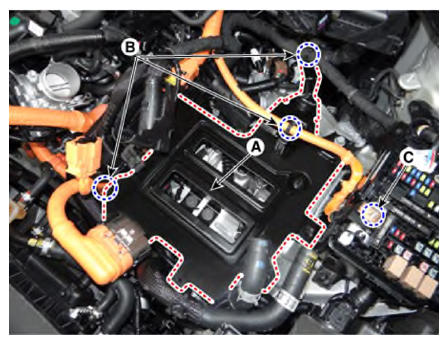

NOTE: The existing shift cable clip (A) must be replaced with new one. (Do not reuse it.) - Install the HPCU tray (A).
Tightening torque:
(A) 21.6 - 23.5 N.m (2.2 - 2.4 kgf.m, 15.9 - 17.4 lb.ft)
- Install the wiring mounting clips (B) to HPCU tray and the tighten the nut (C).
Tightening torque:
(C) 10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)

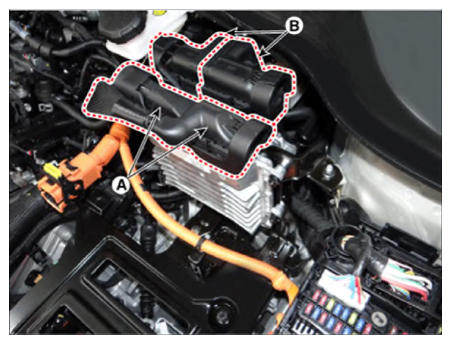

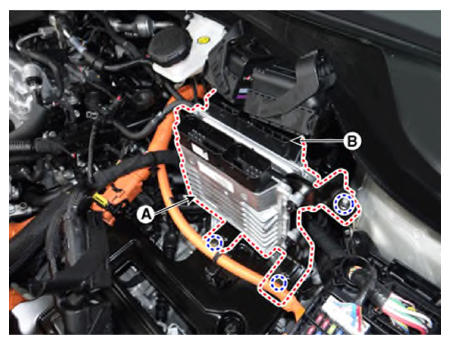

- Install the TCM (A) and ECM (B).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
- Connect the TCM connector (A) and ECM (B) connector.
- Install the hybrid power control unit (HPCU) assembly.
(Refer to Hybrid Control System - "HYBRID POWER CONTROL UNIT ")
- Refill the hybrid motor cooling system with coolant.
(Refer to Hybrid Motor System - "COOLANT ")
- Connect the high voltage circuit.
(Refer to Double Clutch Transmission System - "HIGH VOLTAGE SHUT-OFF PROCEDURES ")
