Components & Components Location: Components

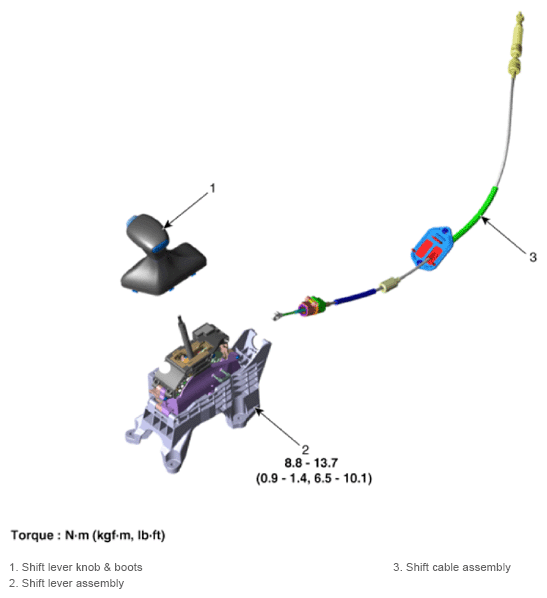

Fig 1: Shift Lever Components With Torque Specification
G13349194Courtesy of KIA MOTORS AMERICA, INC.
