Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

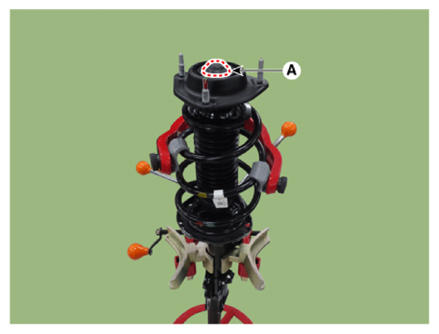

Remove the insulator dust cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

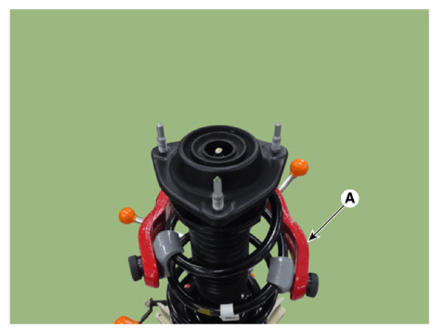

Using the spring compressor, compress the coilspring (A).

Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Do not compress the spring more than necessary.
- To prevent paint peeling from coil spring, cover the coil spring with a thin cloth or hose before installing strut spring compressor.
- Set the compression position of strut spring compressor correctly for coil spring not to slant when compressing the coil spring.

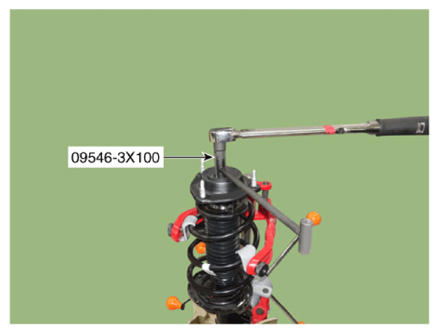

Using the SST (09546-3X100), loosen the self locking nut.
Tightening torque:

68.6 - 88.2 N.m (7.0 - 9.0 kgf.m, 50.6 - 65.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

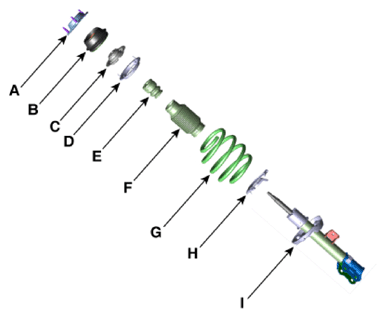

Remove the insulator assembly (A), strut bearing assembly (B), spring upper pad seat assembly (C), spring upper pad (D), bumper stopper (E), bumper stopper (F), coil spring (G) and spring lower pad (H) from the Strut assembly (I).

Courtesy of KIA MOTORS AMERICA, INC.
