Repair Procedures: Reassembly

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Install the insulator, strut bearing, spring pads, coil spring and dust cover to the strut assembly.
Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation.

Courtesy of KIA MOTORS AMERICA, INC.

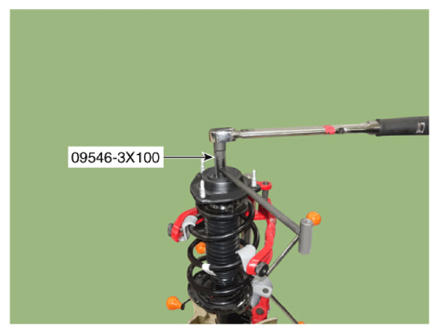

Using the SST (09546-3X100), install the self locking nut.
NOTE:
- Do not reuse the self locking nut.
Tightening torque:

68.4 - 88.2 N.m (7.0 - 9.0 kgf.m, 50.6 - 65.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

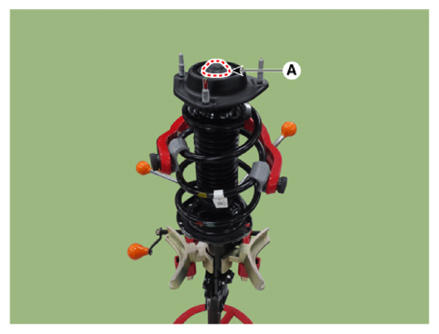

Install the insulator dust cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
