Repair Procedures: Reassembly
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper.
- Install the dynamic damper.

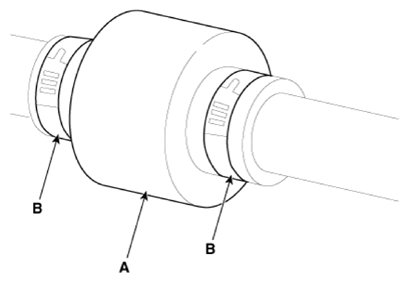

- Install the dynamic damper band (A).
- Using the SST (0K495-C5000), secure the TJ boot bands (B).
Clearance (A): 2.0 mm (0.0787 in.) or less
- Install the TJ joint assembly.
(Refer to Driveshaft Assembly - "TJ JOINT ")
- Install the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
- Check the alignment.
(Refer to Suspension System - "ALIGNMENT ")
