Repair Procedures: Replacement

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

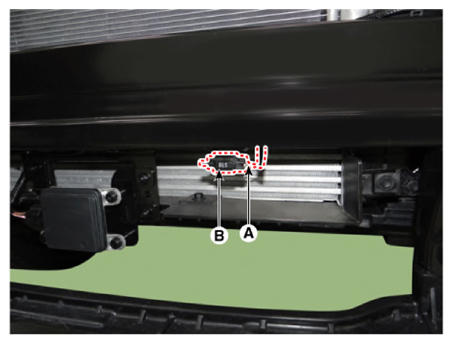

  3. Disconnect the connector (A) and then remove the ambient temperature sensor (B).
    G13482223Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
