Repair Procedures: Removal

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Precautions for using the plastic pulley

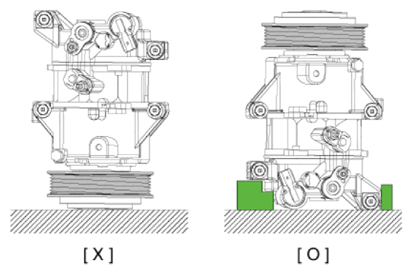

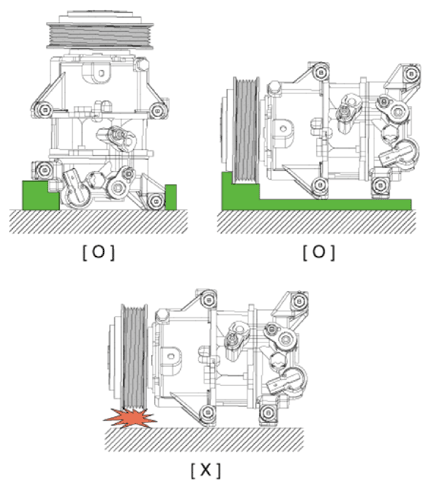

Be careful not to place the pulley to downwards of the floor or table.

Courtesy of KIA MOTORS AMERICA, INC.

Be careful not to apply the external force and impact on pulley while moving or using.

Courtesy of KIA MOTORS AMERICA, INC.

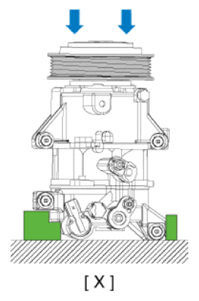

Be careful not to apply force to the pulley.

Courtesy of KIA MOTORS AMERICA, INC.

If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
Disconnect the negative (-) battery terminal.
Recover the refrigerant with a recovery/charging station.
Remove the engine room under cover.
G 1.6 T-GDI (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

G 2.0 Nu MPI (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Loosen the drive belt.
G 1.6 T-GDI (Refer to Engine Mechanical System - "DRIVE BELT ")

G 2.0 Nu MPI (Refer to Engine Mechanical System - "DRIVE BELT ")

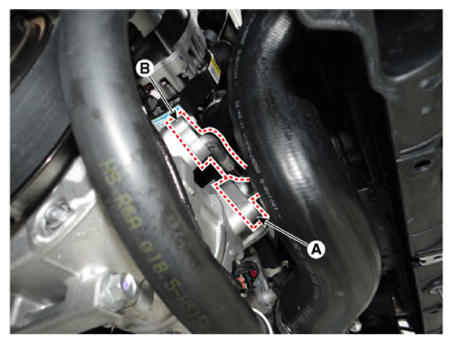

Remove the bolts, then disconnect the suction line (A) and discharge line (B) from the compressor.
Tightening torque:

21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb.ft)
NOTE:
- Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.
Courtesy of KIA MOTORS AMERICA, INC.

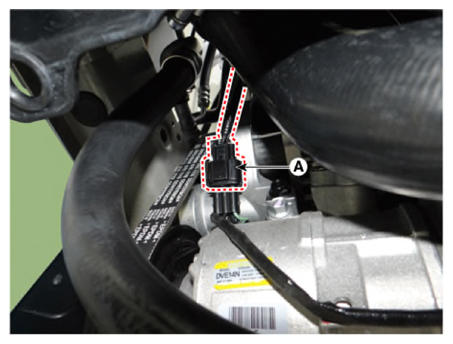

Disconnect the compressor switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

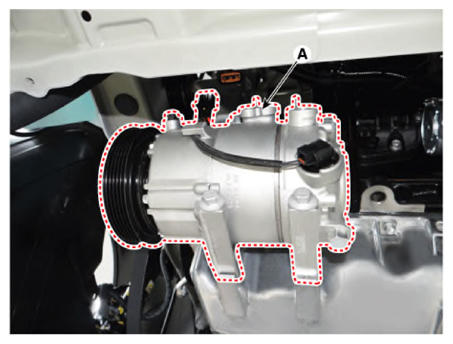

Remove the compressor (A) by loosening the mounting bolts.
Tightening torque:

20.0 - 33.3 N.m (2.0 - 3.4 kgf.m, 14.8 - 24.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
