Repair Procedures: Replacement

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.

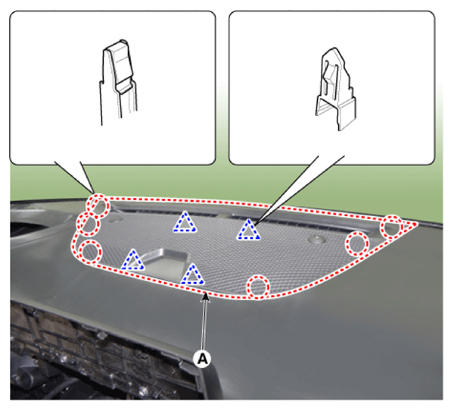

Using a screwdriver or remover, remove the center speaker grille (A).

Courtesy of KIA MOTORS AMERICA, INC.

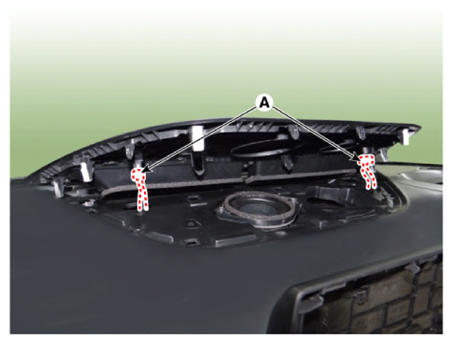

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

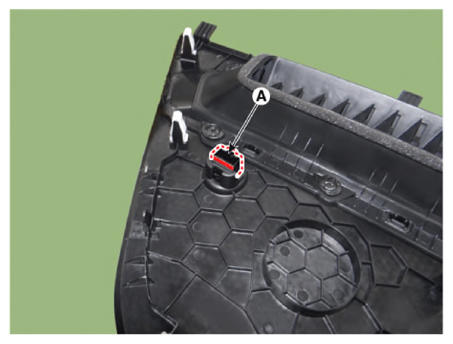

Remove the photo sensor (A) by pushing the pin in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
