Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If a DTC occurs in the ECU, check the connectors and wiring. If no problem is found, replace the ECU.

CAUTION:

Before replacing the MDPS ECU, use the diagnostic device to read the settings of the old ECU

Perform the "ECU data backup" by GDS following in the order below.

Connect self - diagnosis connector (16pins) located in the lower of driver side crash pad to self - diagnosis device.
Turn the self - diagnosis device after key is ON.
After Selecting the "vehicle model" and "EPS system" on GDS vehicle selection screen.

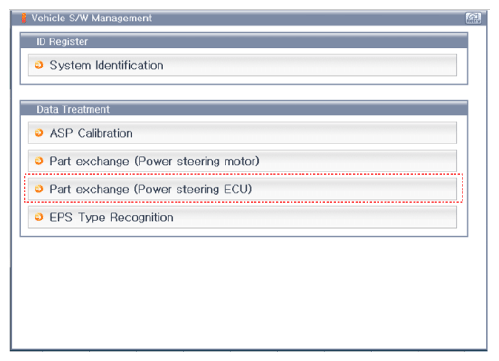

Select the "Part exchange (Power steering ECU)"

Courtesy of HYUNDAI MOTOR AMERICA

Follow the instructions displayed in image on the screen.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

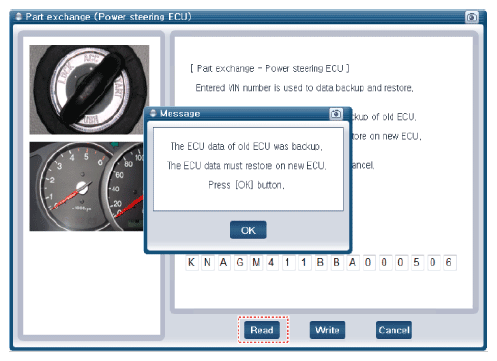

Insert the VIN number and then select the "Read" in order to the ECU information save.

Courtesy of HYUNDAI MOTOR AMERICA

Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Disconnect the connector (A), (B) from the MDPS control unit.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Remove the MDPS control unit (A) from the steering column after loosening the bolts (B).
Tightening Torque:

19.6 - 23.5 N.m (2.0 - 2.4 kgf.m, 14.5 - 17.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.

Perform the "ECU data restore" by GDS following in the order below.

Connect self - diagnosis connector (16pins) located in the lower of driver side crash pad to self - diagnosis device.
Turn the self - diagnosis device after key is ON.
After Selecting the "vehicle model" and "EPS system" on GDS vehicle selection screen.

Select the "Part exchange (Power steering ECU)"

Courtesy of HYUNDAI MOTOR AMERICA

Follow the instructions displayed in image on the screen.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

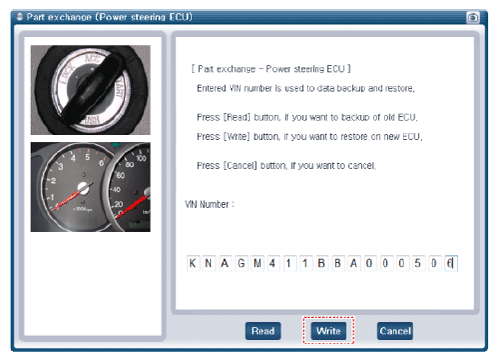

Insert the VIN number and then select the "Write" in order to the ECU information save.

Courtesy of HYUNDAI MOTOR AMERICA

Conduct the "ASP Calibration" by GDS.
(Refer to MDPS Control Unit- "DIAGNOSIS WITH GDS ")
Remove the DTC and then perform the Conduct the "MDPS TEST (Motor Driven Power Steering)" by GDS.
(Refer to Motor Driven Power Steering - "MDPS Performance Inspection ")
Turn off the IGN switch and wait for 10 seconds or more. Then check the operation after starting the engine.
