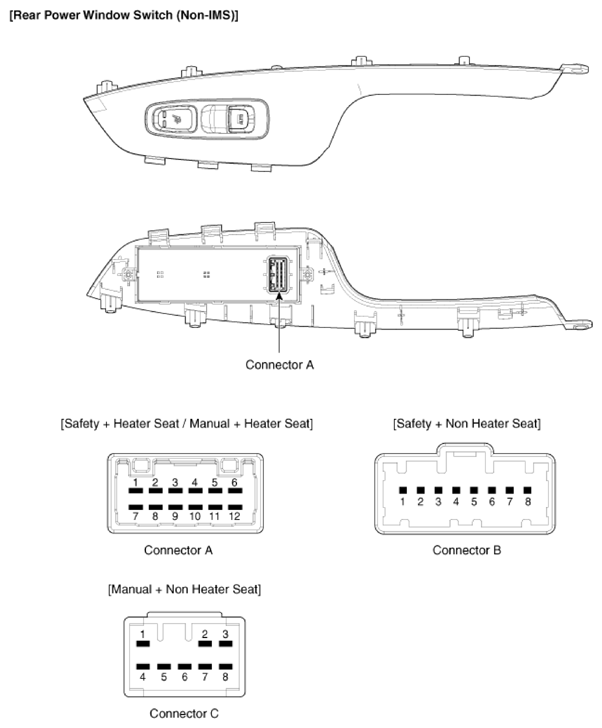

Connector Pin Information
[Connector A]
(Safety + Heater Seat)
| No. | Description |
|---|---|
| 1 | Seat heater indicator (High) |
| 2 | - |
| 3 | - |
| 4 | Tail lamp |
| 5 | - |
| 6 | Seat heater indicator (Low) |
| 7 | GND |
| 8 | Rear left window lock switch |
| 9 | Rear power window switch |
| 10 | - |
| 11 | - |
| 12 | Rear seat heater switch |
(Manual + Heater Seat)
| No. | Description |
|---|---|
| 1 | Seat heater indicator (High) |
| 2 | Rear left window (Up) |
| 3 | Battery LH (+) |
| 4 | Tail lamp |
| 5 | Rear left window (Down) |
| 6 | Seat heater indicator (Low) |
| 7 | GND |
| 8 | Rear left window lock switch |
| 9 | Rear right window (Up) |
| 10 | Rear right window (Down) |
| 11 | - |
| 12 | Rear seat heater switch |
(Manual + Non Heater Seat)
| No. | Description |
|---|---|
| 1 | - |
| 2 | Rear left window (Up) |
| 3 | Battery LH (+) |
| 4 | Tail lamp |
| 5 | Rear left window (Down) |
| 6 | - |
| 7 | GND |
| 8 | Rear left window lock switch |
| 9 | Rear right window (Up) |
| 10 | Rear right window (Down) |
| 11 | - |
| 12 | - |
[Connector B]
(All Safety + Non Heater Seat)
| No. | Description |
|---|---|
| 1 | - |
| 2 | Window switch |
| 3 | - |
| 4 | Tail lamp |
| 5 | - |
| 6 | - |
| 7 | GND |
| 8 | - |
[Connector A]
(Safety + Heater Seat)
| No. | Description |
|---|---|
| 1 | Seat heater indicator (High) |
| 2 | - |
| 3 | - |
| 4 | Tail lamp |
| 5 | - |
| 6 | Seat heater indicator (Low) |
| 7 | GND |
| 8 | - |
| 9 | Rear power window switch |
| 10 | - |
| 11 | - |
| 12 | Rear seat heater switch |
(Manual + Heater Seat)
| No. | Description |
|---|---|
| 1 | Seat heater indicator (High) |
| 2 | Rear left/right window (Up) |
| 3 | Battery SUB (+) |
| 4 | Tail lamp |
| 5 | Rear left/right window (Down) |
| 6 | Seat heater indicator (Low) |
| 7 | GND |
| 8 | - |
| 9 | Motor (Up) |
| 10 | Motor (Down) |
| 11 | - |
| 12 | Rear seat heater switch |
[Connector B]
(Safety + Non Heater Seat)
| No. | Description |
|---|---|
| 1 | - |
| 2 | Rear left/right power window switch |
| 3 | - |
| 4 | Tail lamp |
| 5 | - |
| 6 | - |
| 7 | GND |
| 8 | - |
[Connector C]
(Manual + Non Heater Seat)
| No. | Description |
|---|---|
| 1 | Motor (Up) |
| 2 | - |
| 3 | Motor (Down) |
| 4 | Rear left window (Up) |
| 5 | Tail lamp |
| 6 | Battery SUB (+) |
| 7 | GND |
| 8 | Rear left window (Down) |
