Measuring Resistance

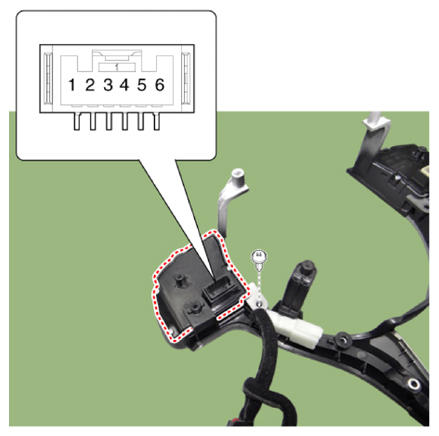

- Disconnect the cruise control switch connector from the control switch.
- Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
Function switch Connector terminal Resistance (kΩ) [±3%] CANCEL 3-5 0.39 SET - 3-5 0.61 RES + 3-5 0.91 CRUISE 3-5 2.13 ASCC 3-5 3.63 - If not within specification, replace switch.
