Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Disassembly the steering wheel assembly. (Refer to Steering System - "STEERING WHEEL ")

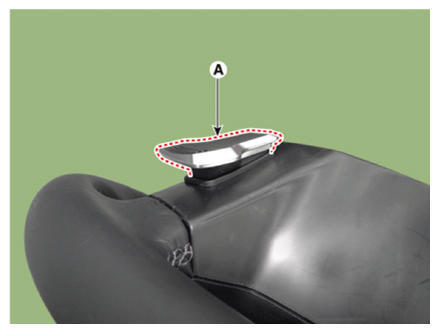

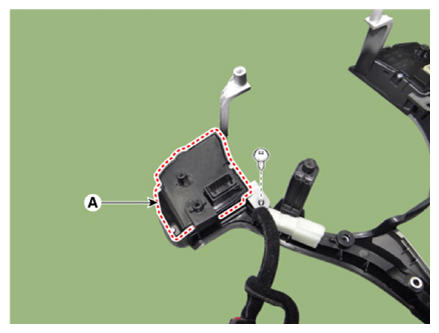

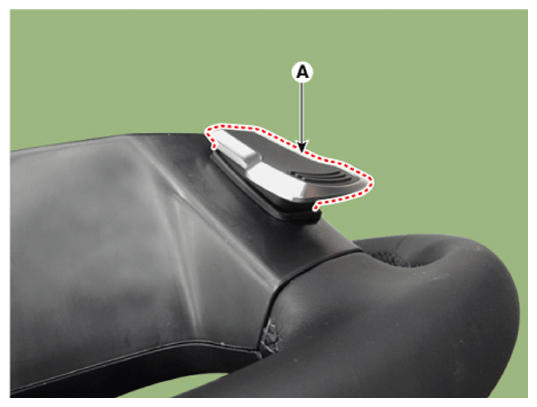

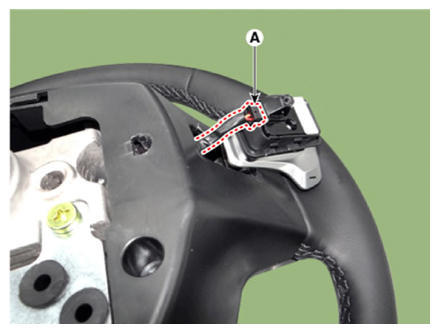

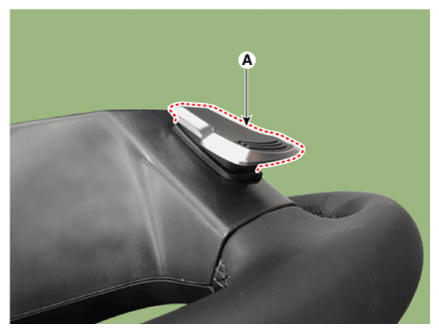

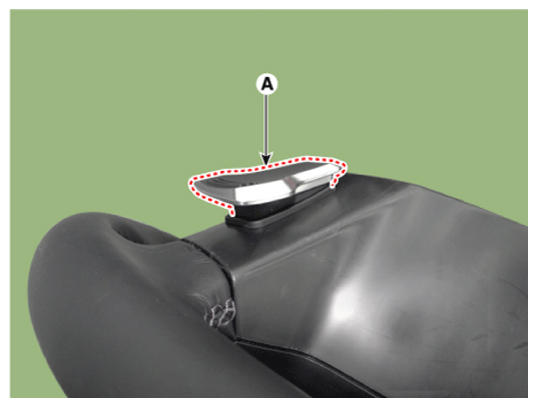

Remove the paddle shift switch (A) after loosening the mounting screws.
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

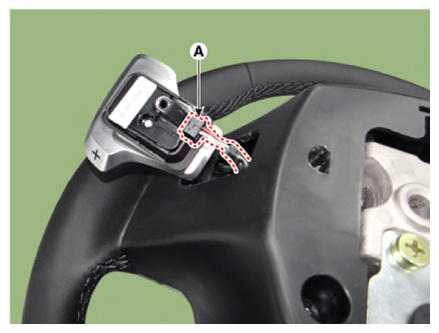

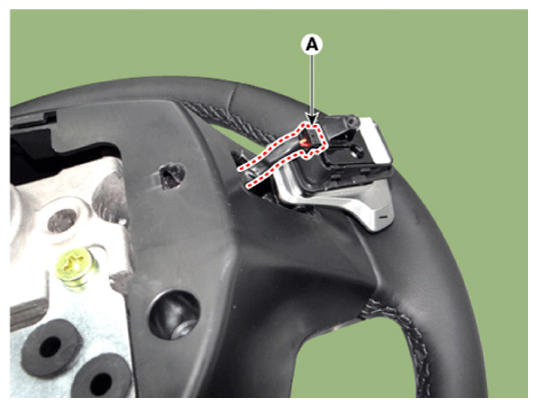

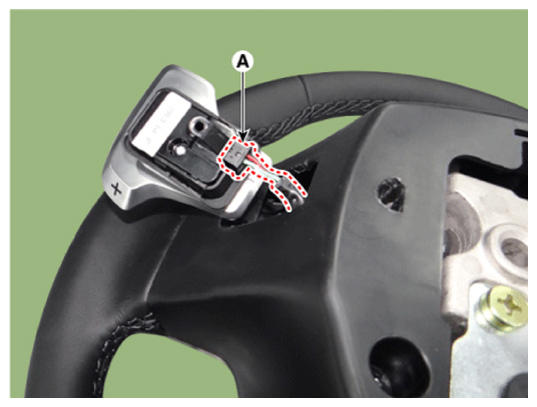

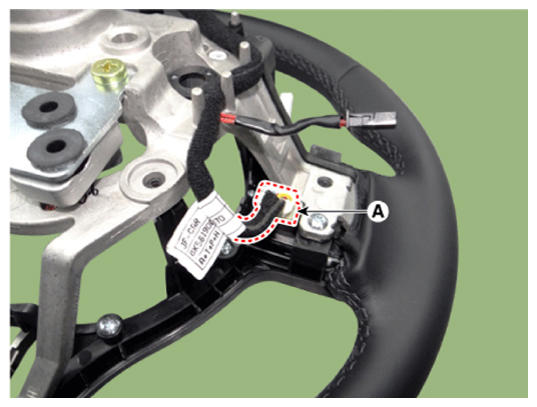

Disconnect the paddle shift switch connector (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

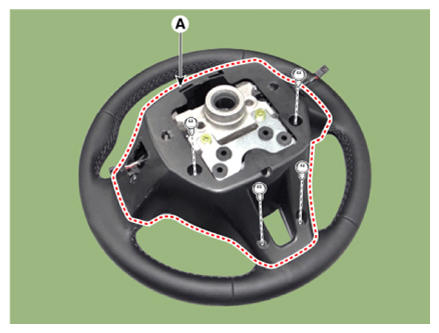

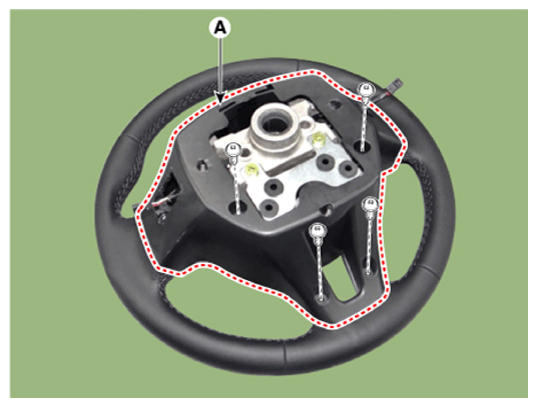

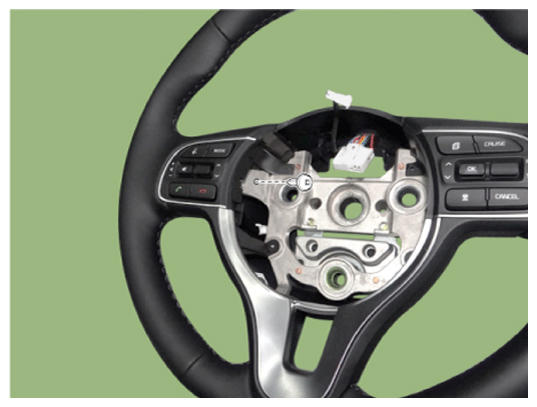

Remove the steering back cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

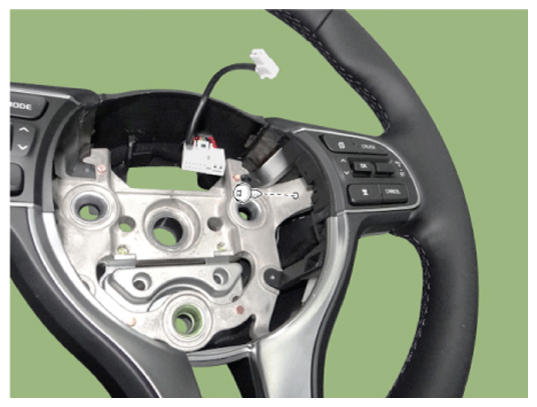

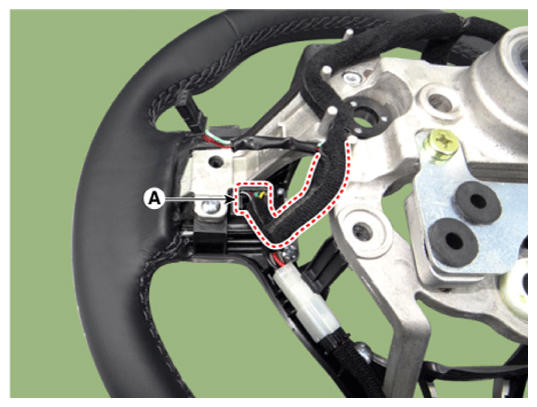

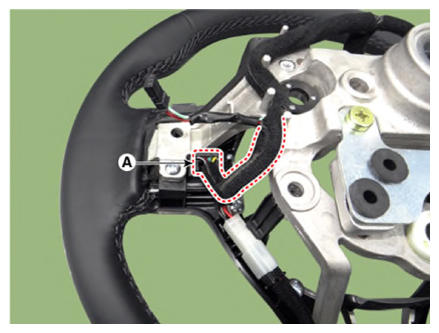

Disconnect the steering wheel remote connector (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

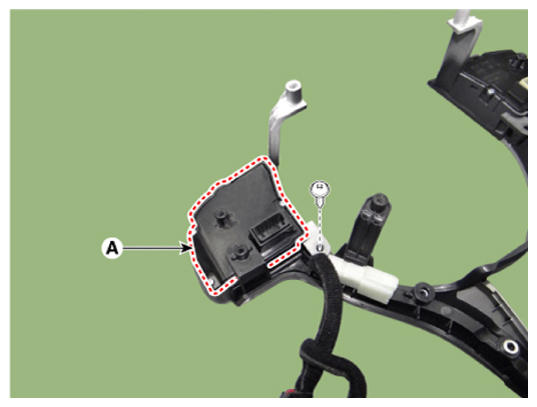

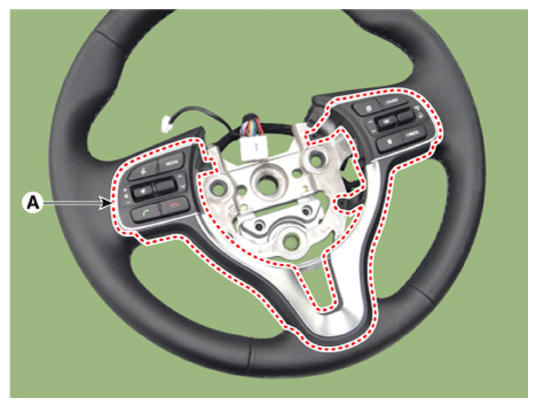

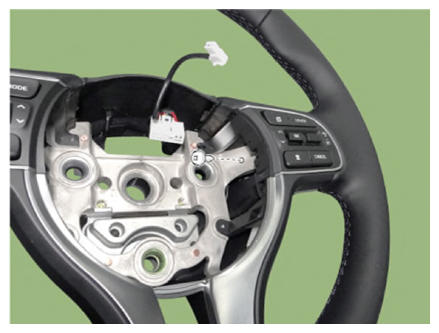

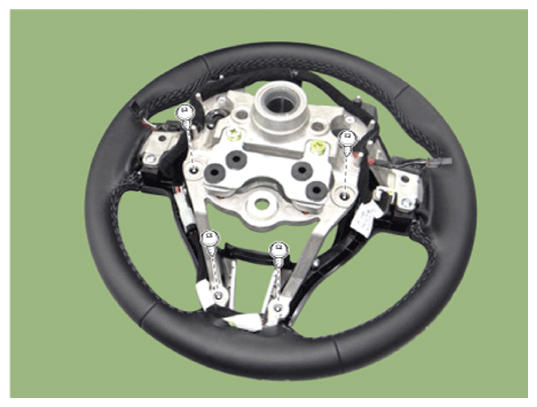

Remove the steering wheel remote control assembly (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

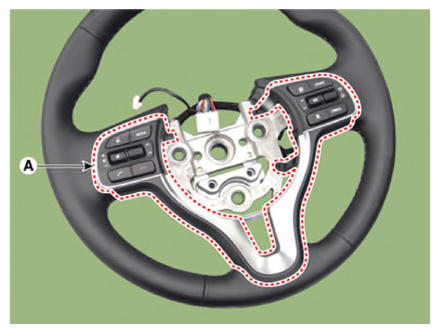

Remove the ASCC switch (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.
