Repair Procedures: Installation

  1. Install in the reverse order of removal.

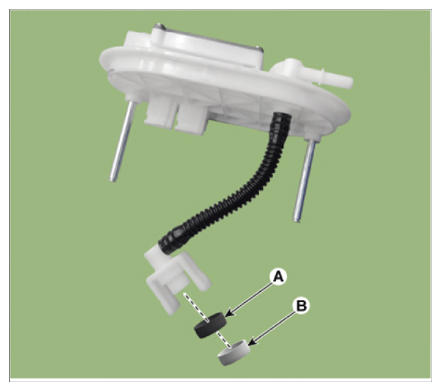

    NOTE: Be careful not to miss the o-ring (A) and spacer (B) when assembling the fuel pump.
    G13361835Courtesy of KIA MOTORS AMERICA, INC.
