Neutralization Status Check
WARNING: This page is about a different variant/trim than selected.
- Connect the cable of KDS to the data link connector in driver side crash pad lower panel.

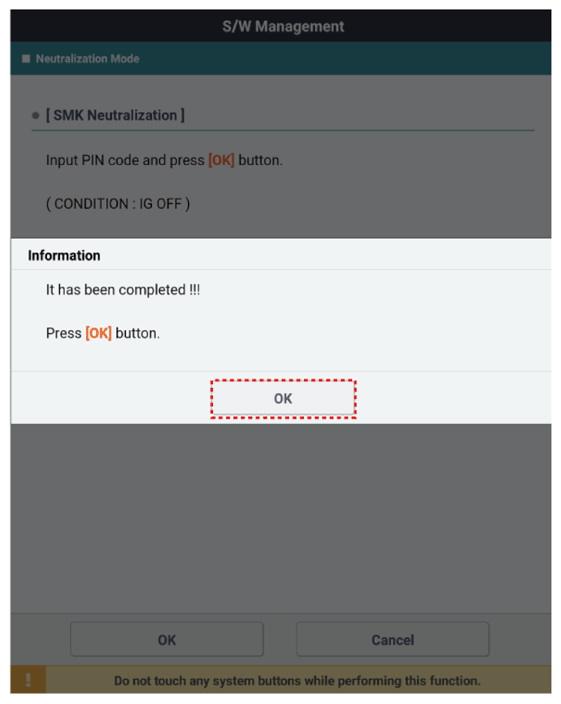

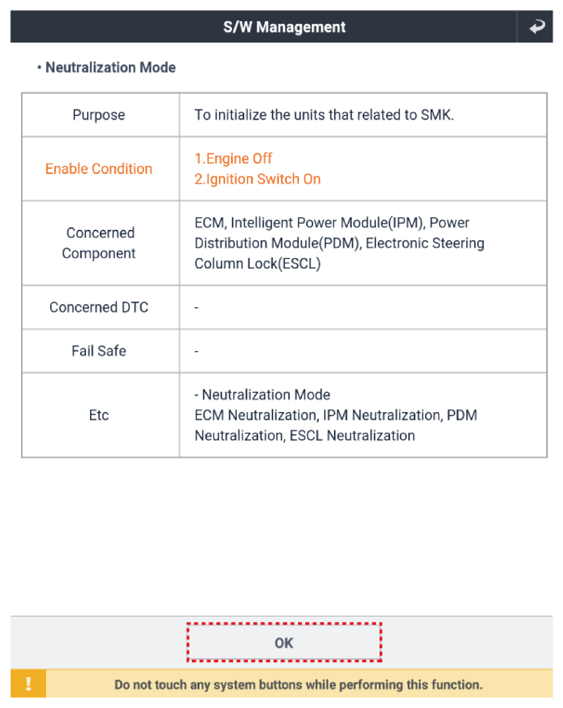

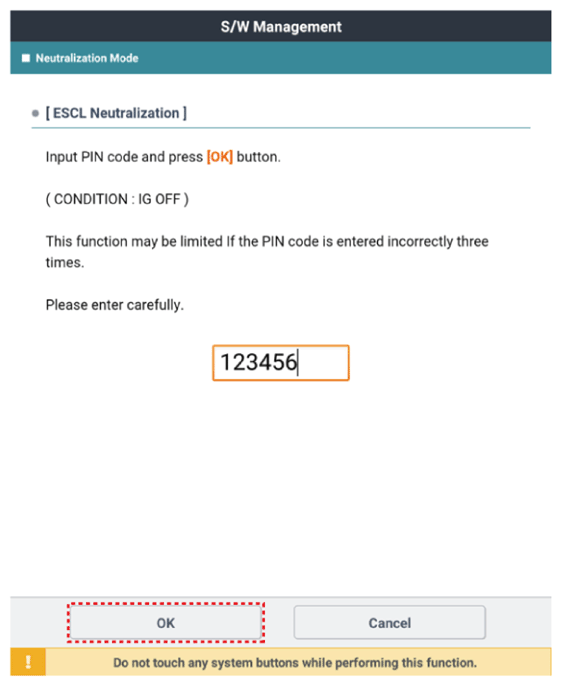

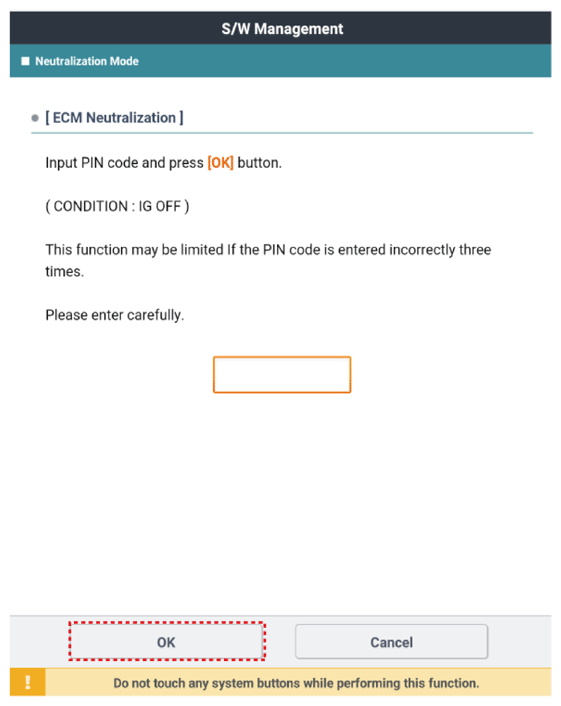

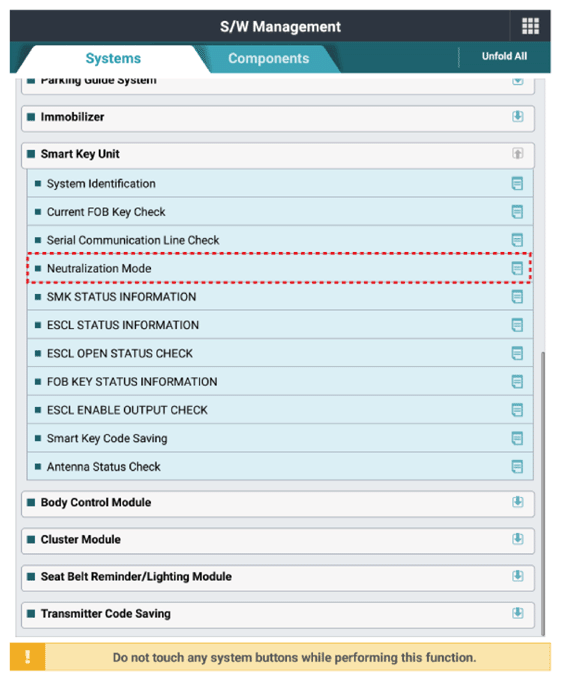

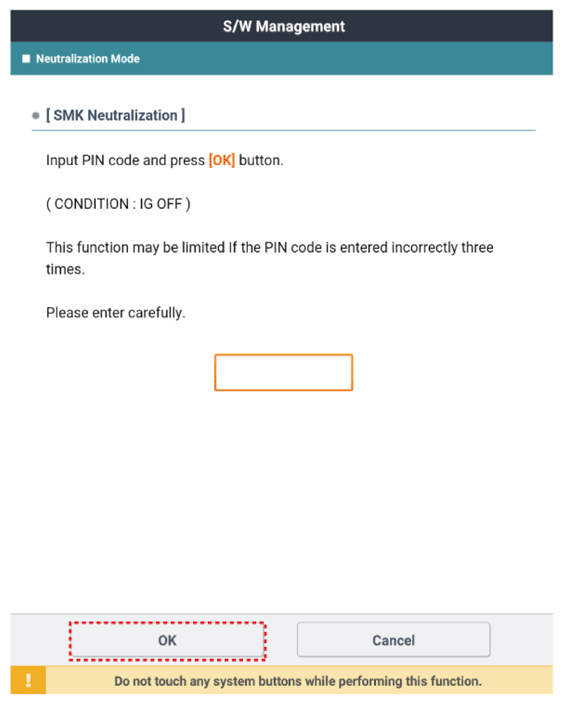

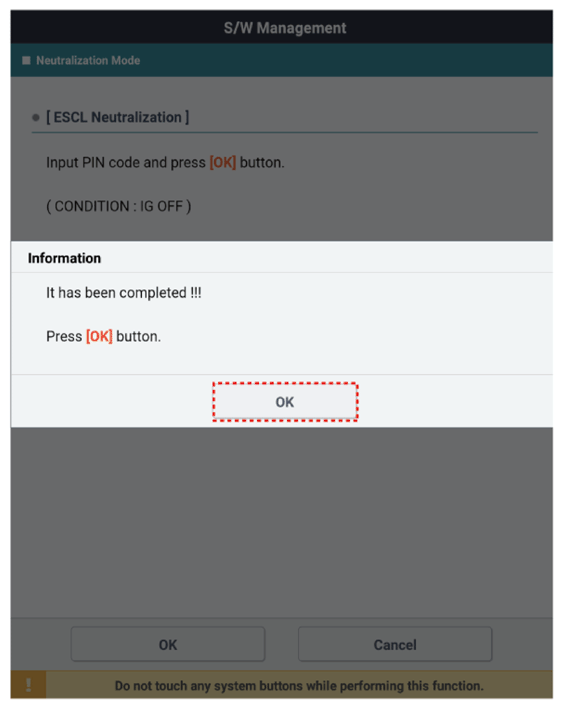

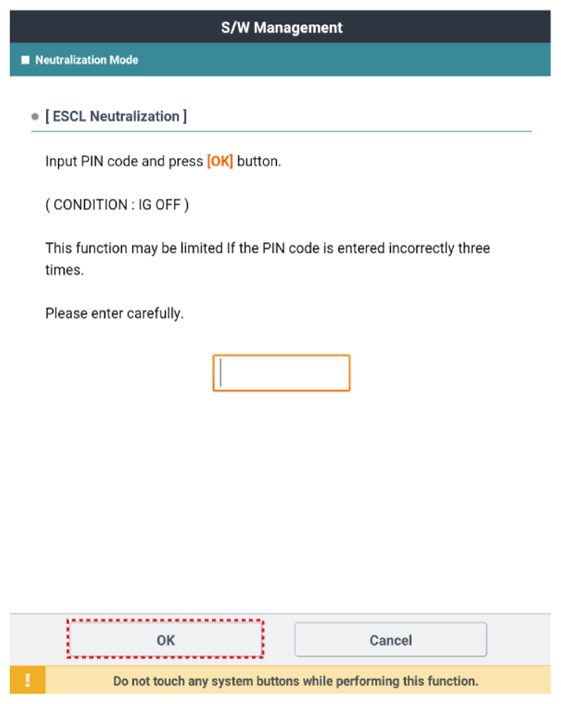

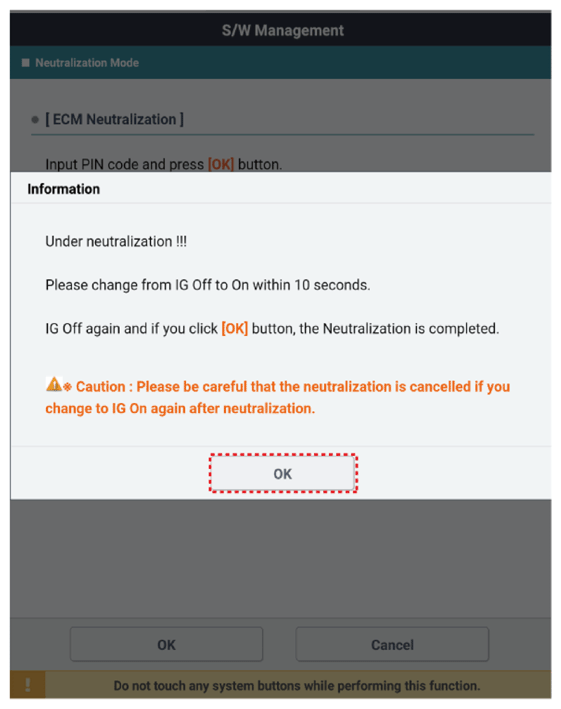

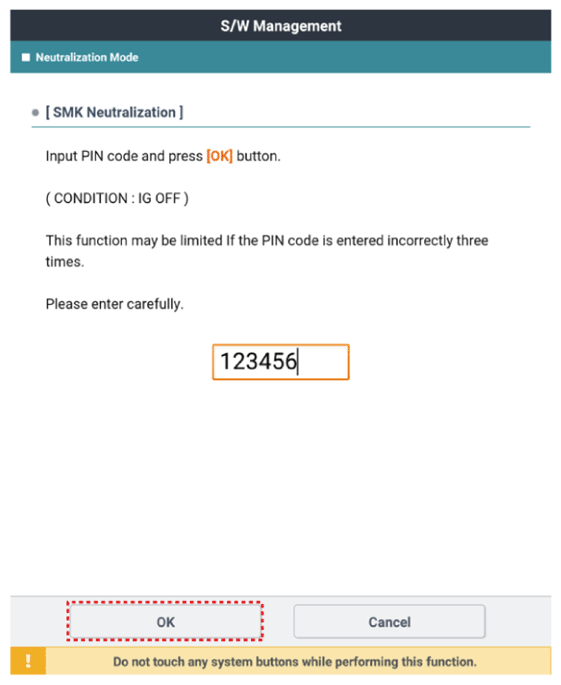

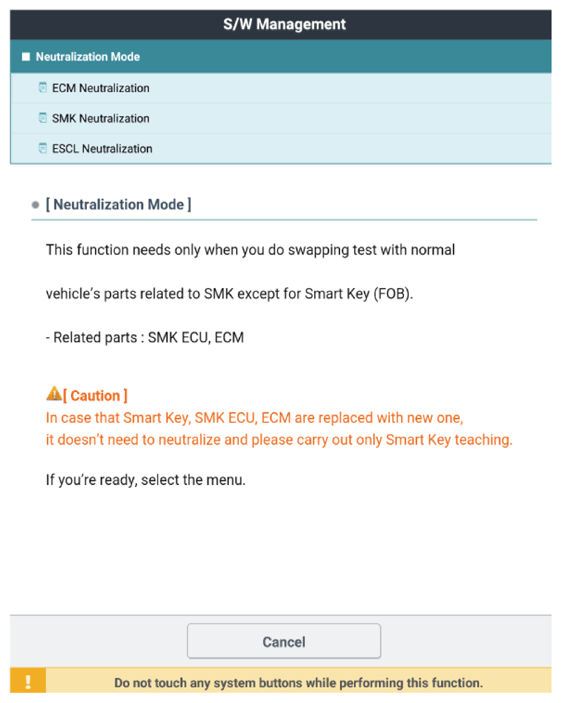

- After IG ON, select the "Neutralization mode".
