Section 70 (Smart Key System (HEV))
>>
Smart Key Unit
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

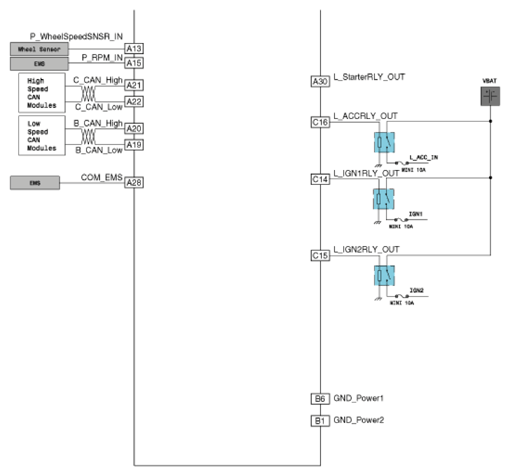

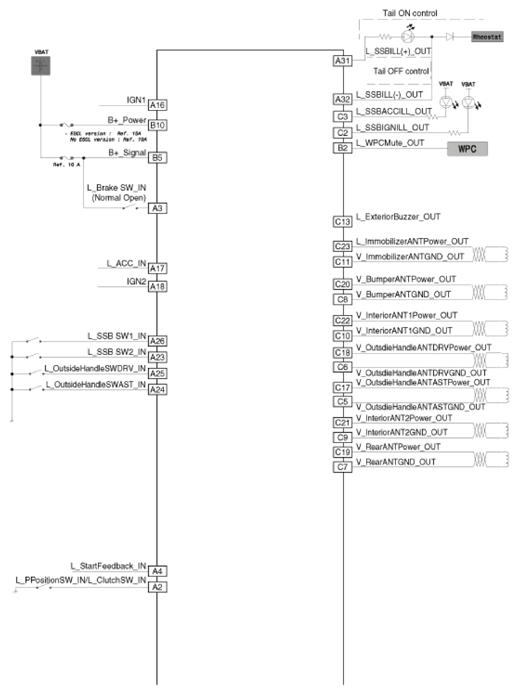

Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
