Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.
 Fig.1 to 2
Fig.3 to 5
CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.

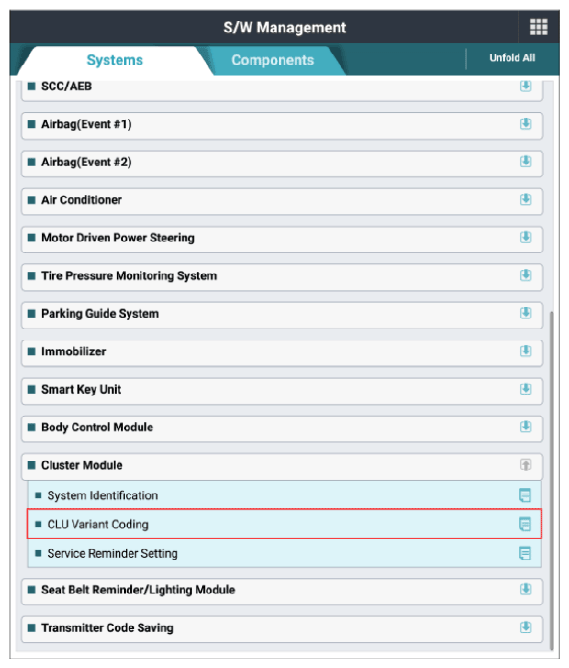

G13414122Courtesy of KIA MOTORS AMERICA, INC.

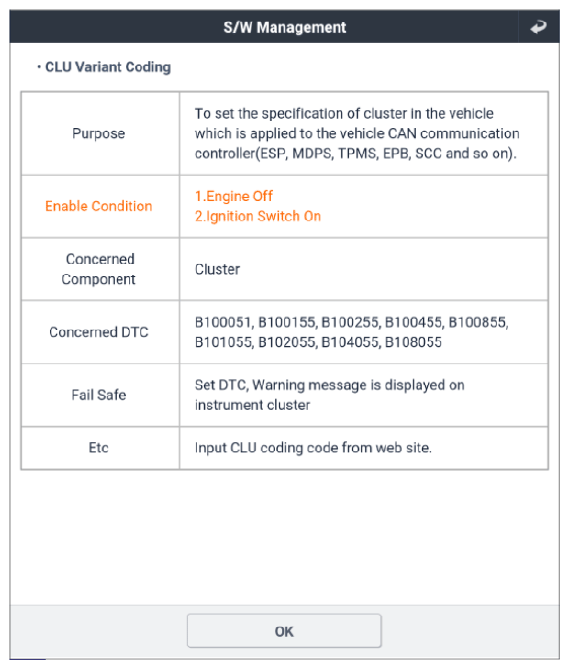

G13414123Courtesy of KIA MOTORS AMERICA, INC.

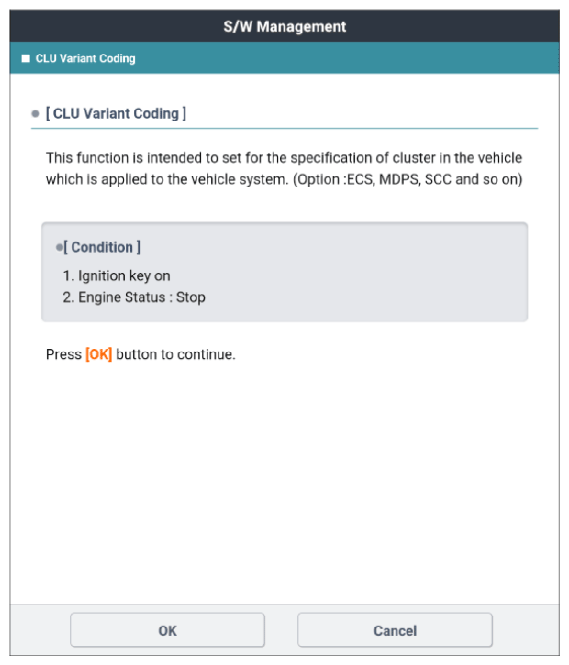

G13414124Courtesy of KIA MOTORS AMERICA, INC.

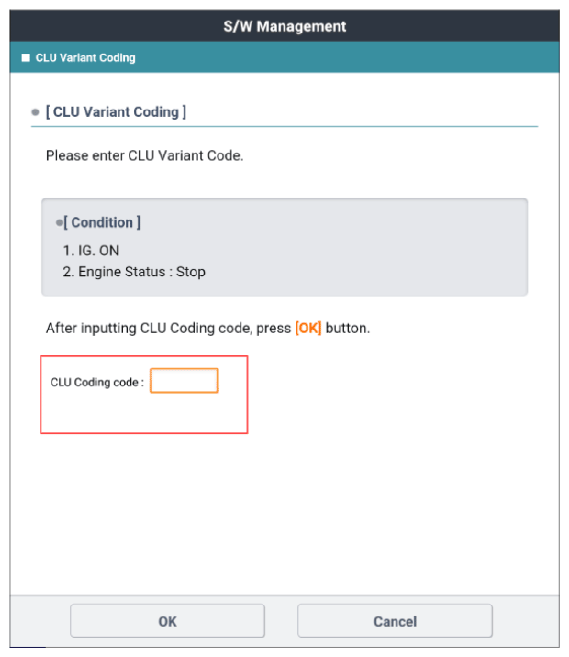

G13414125Courtesy of KIA MOTORS AMERICA, INC.
G13414126Courtesy of KIA MOTORS AMERICA, INC.

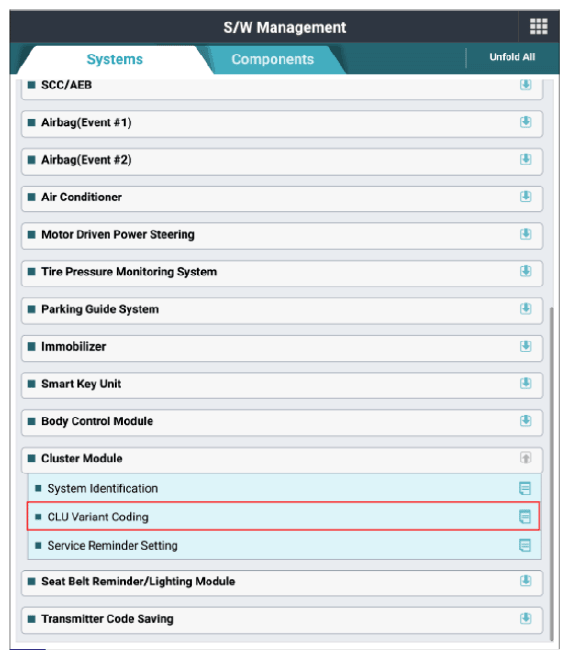

G13414127Courtesy of KIA MOTORS AMERICA, INC.

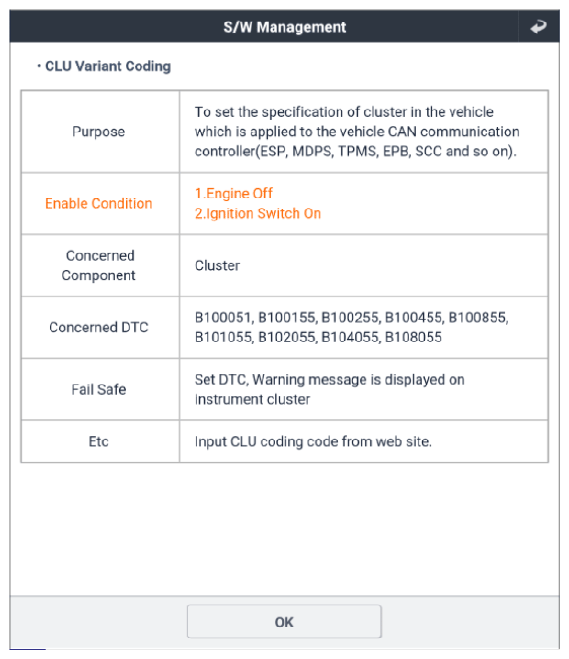

G13414128Courtesy of KIA MOTORS AMERICA, INC.

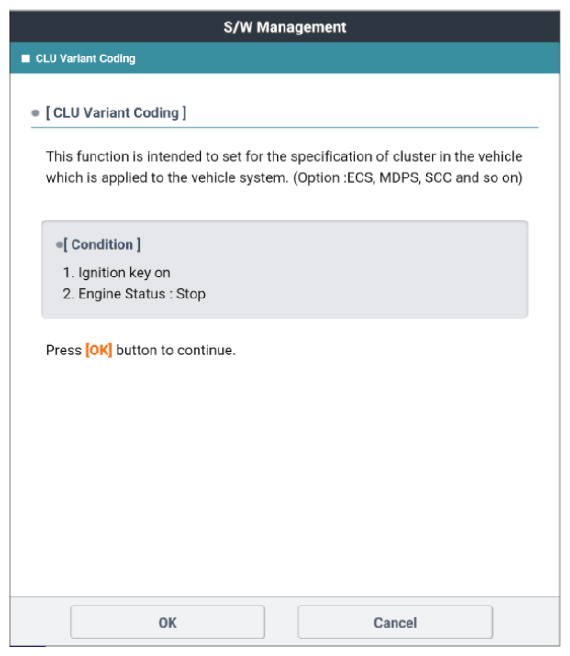

G13414129Courtesy of KIA MOTORS AMERICA, INC.

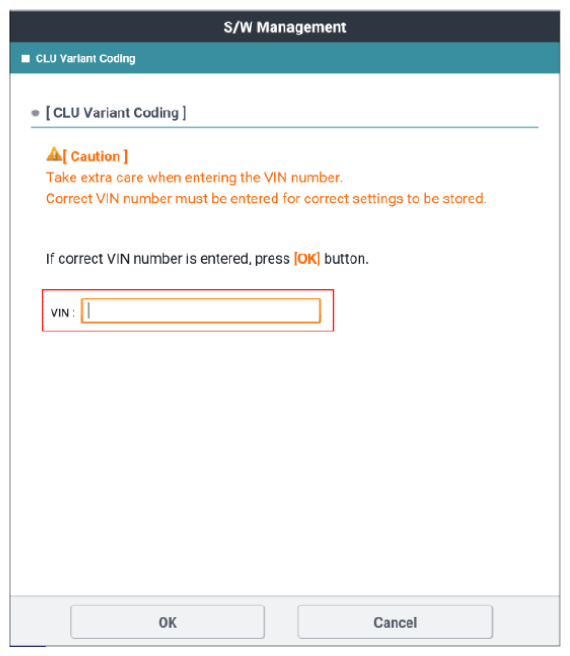

G13414130Courtesy of KIA MOTORS AMERICA, INC.
G13414131Courtesy of KIA MOTORS AMERICA, INC.
