Smart Key Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

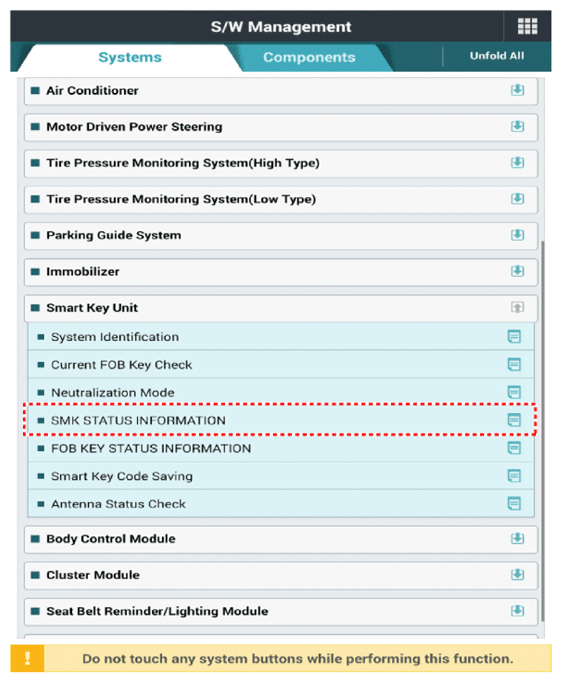

    G13417754Courtesy of KIA MOTORS AMERICA, INC.

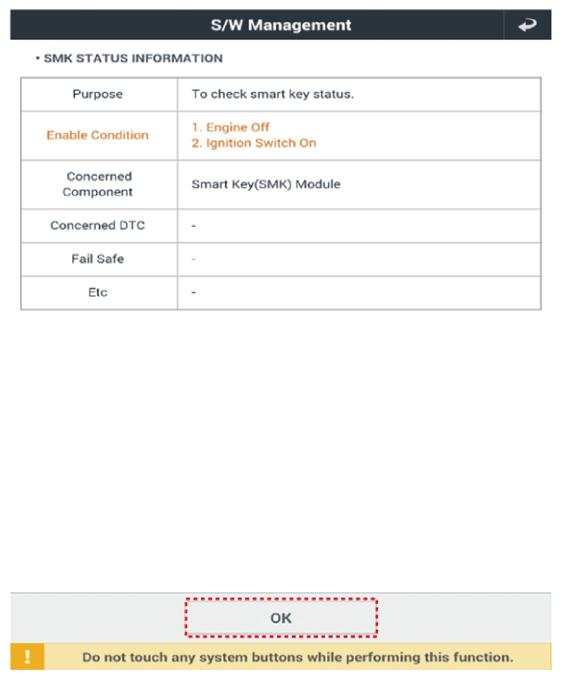

    G13417755Courtesy of KIA MOTORS AMERICA, INC.

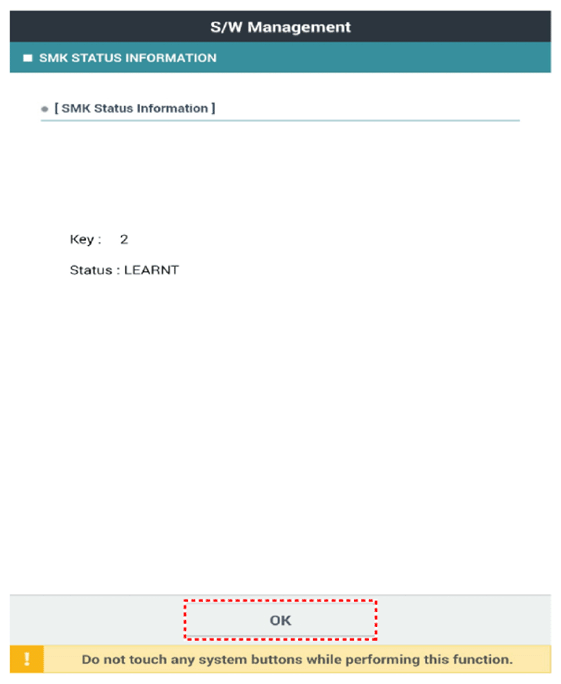

    G13417756Courtesy of KIA MOTORS AMERICA, INC.
