Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Remove the steering column upper and lower shrouds after loosening the screws.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")
Remove the multifunction switch.
(Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

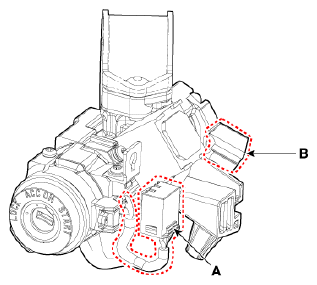

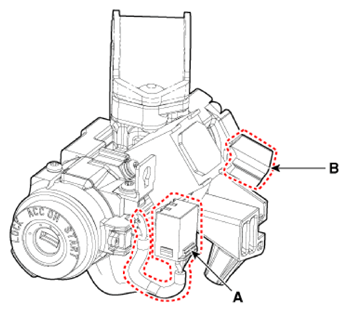

Remove the ignition switch connector (A) and key warning/immobilizer connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

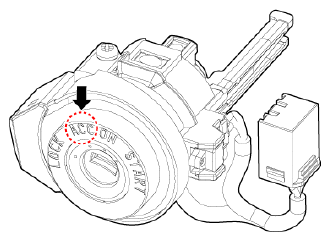

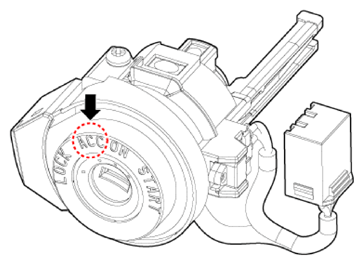

Insert key and turn it to ACC position.

Courtesy of KIA MOTORS AMERICA, INC.

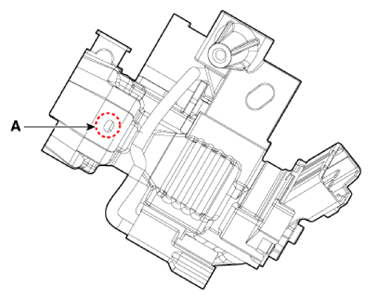

Push the lock pin (A) with a punch.

Courtesy of KIA MOTORS AMERICA, INC.

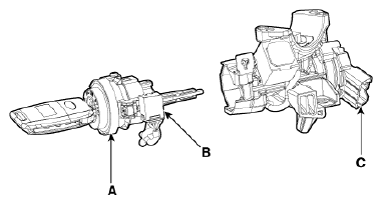

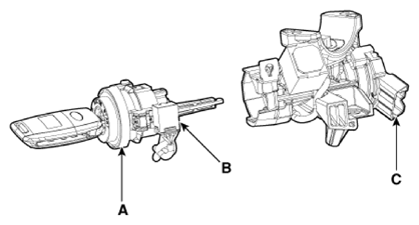

Remove the key lock cylinder (A).
B: Key warning switch

C: Ignition switch connector

Courtesy of KIA MOTORS AMERICA, INC.

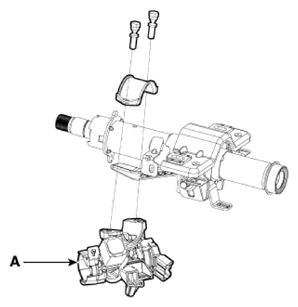

Remove the ignition switch (A) after loosening the mounting bolts.
