Assist/Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front right door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

    (Refer to Body - "REAR DOOR TRIM ")

  3. Disconnect the power window switch connector from the door trim.

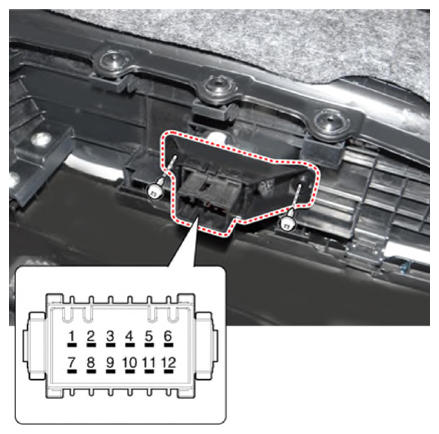

    [Assist power window switch]

    G13417649Courtesy of KIA MOTORS AMERICA, INC.

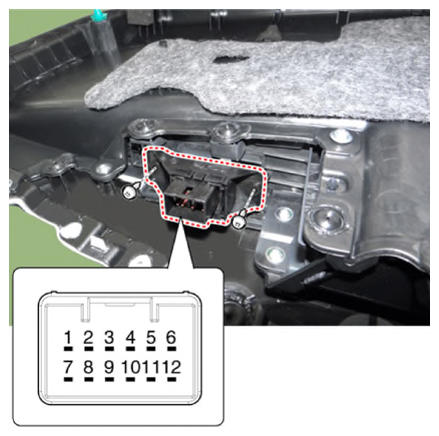

    [Rear Power Window Switch]

    G13417650Courtesy of KIA MOTORS AMERICA, INC.

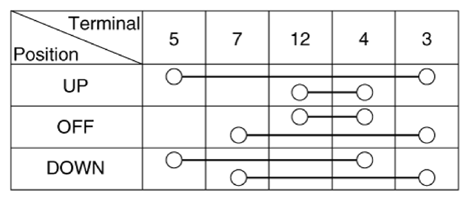

  4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
    G13417651Courtesy of KIA MOTORS AMERICA, INC.
