Repair Procedures: Replacement

Pull down rear door window glass by pressing the power window glass switch.
Remove the rear door trim.
(Refer to Rear Door - "REAR DOOR TRIM ")

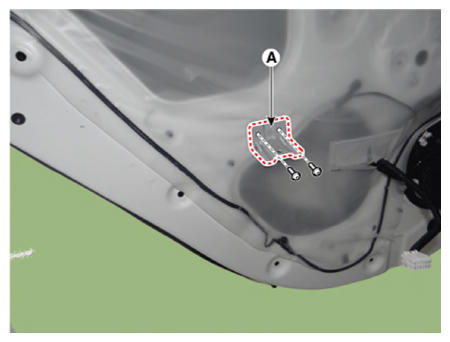

Remove the door pull handle mounting support (A) after loosening the screws.

Courtesy of KIA MOTORS AMERICA, INC.

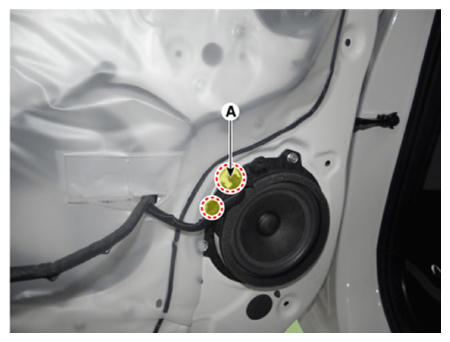

Disconnect the front door speaker connector (A), and then remove the wiring mounting clips.

Courtesy of KIA MOTORS AMERICA, INC.

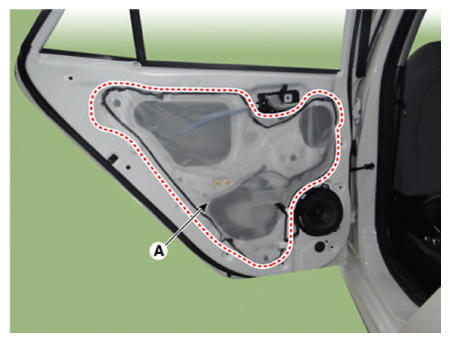

Remove the front door trim seal (A).

Courtesy of KIA MOTORS AMERICA, INC.

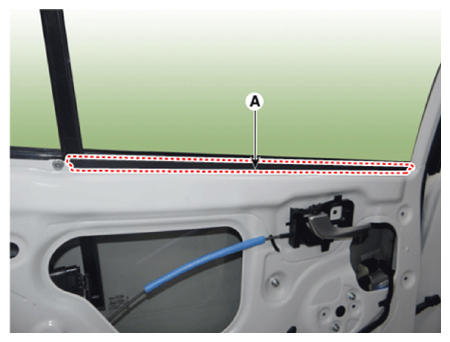

Remove the front door belt inside weather strip (A).

Courtesy of KIA MOTORS AMERICA, INC.

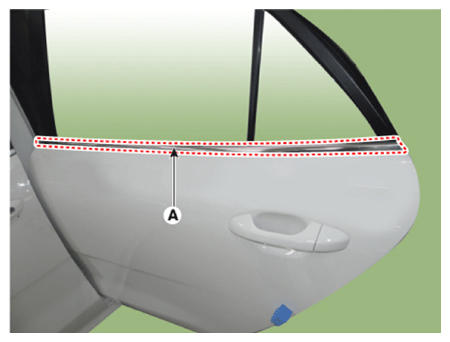

Remove the front door belt outside weather strip (A).

Courtesy of KIA MOTORS AMERICA, INC.

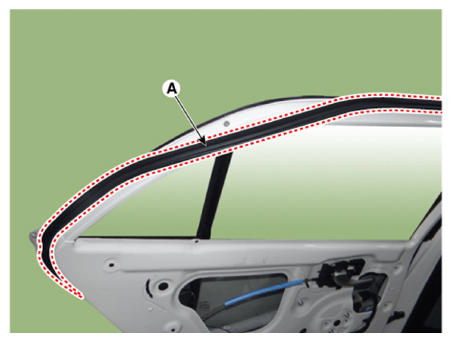

Separate the door side weatherstrip (A).

Courtesy of KIA MOTORS AMERICA, INC.

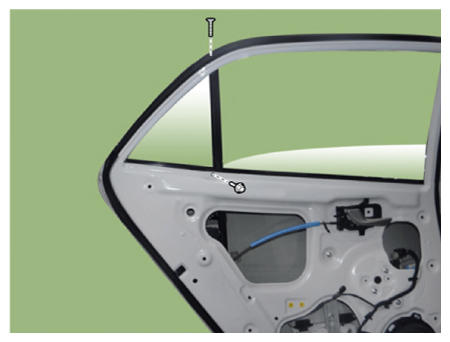

Loosen the mounting screw and bolt.

Courtesy of KIA MOTORS AMERICA, INC.

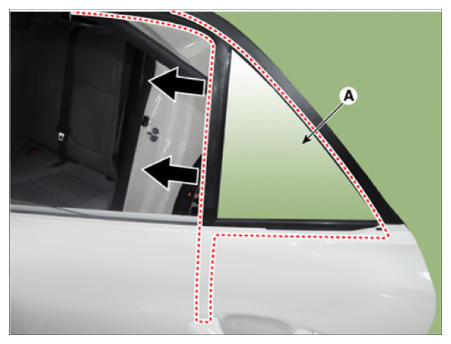

Remove the quarter fixed glass & molding (A).

Courtesy of KIA MOTORS AMERICA, INC.

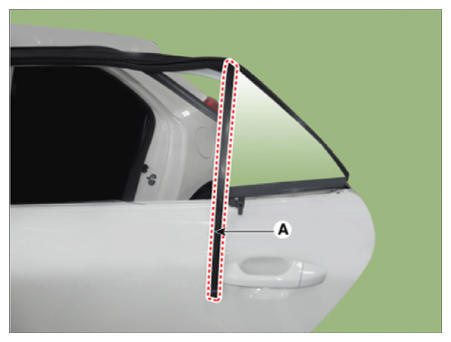

Remove the rear door molding (A).

Courtesy of KIA MOTORS AMERICA, INC.

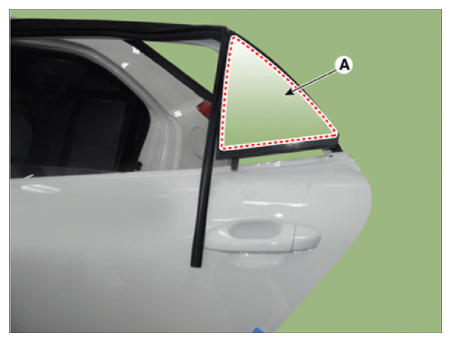

Remove the quarter fixed glass (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips.
