Repair Procedures: Inspection: Rotor

  1. Check That There Is Continuity Between The Slip Rings (C).
  2. Check That There Is No Continuity Between The Slip Rings And The Rotor (B) Or Rotor Shaft (A).

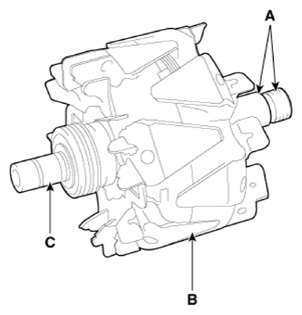

    G13412151Courtesy of KIA MOTORS AMERICA, INC.
  3. If The Rotor Fails Either Continuity Check, Replace The Alternator.
