Components & Components Location: Components

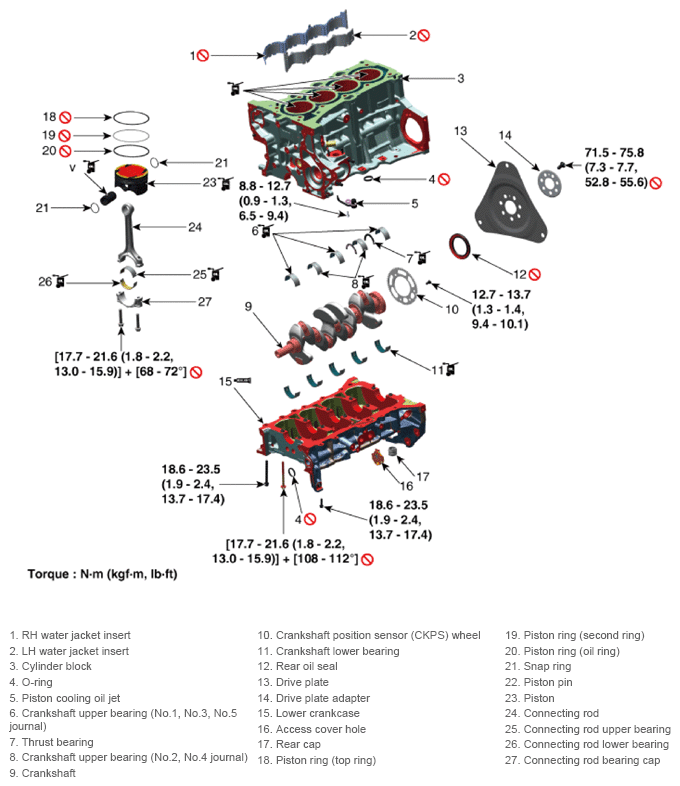

Fig 1: Cylinder Block Assembly Components With Torque Specification
G13411748Courtesy of KIA MOTORS AMERICA, INC.
