Components & Components Location: Components

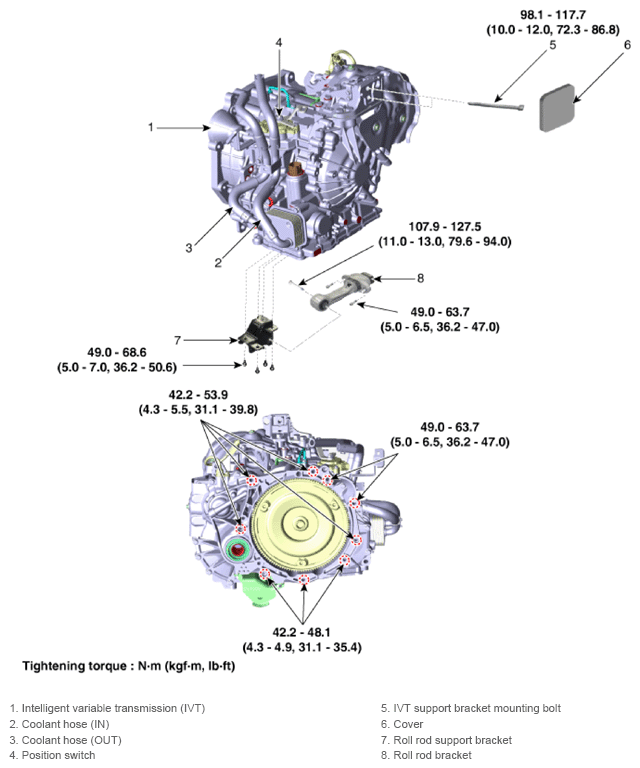

Fig 1: Intelligent Variable Transmission Components With Torque Specification
G13412528Courtesy of KIA MOTORS AMERICA, INC.
