Smart Key Code Saving

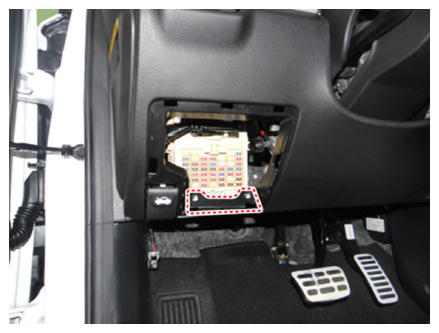

  1. Connect the DLC cable of KDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on KDS.
    G13417707Courtesy of KIA MOTORS AMERICA, INC.
  2. Select the vehicle model and then do "Smart key code saving".

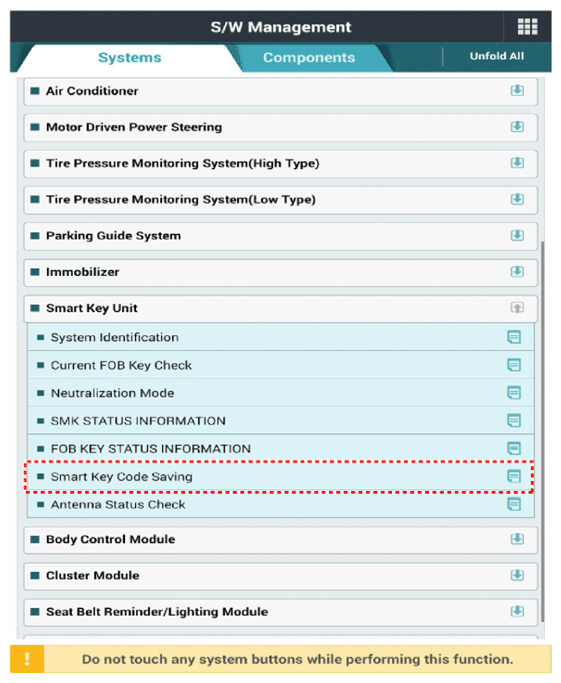

    G13417708Courtesy of KIA MOTORS AMERICA, INC.

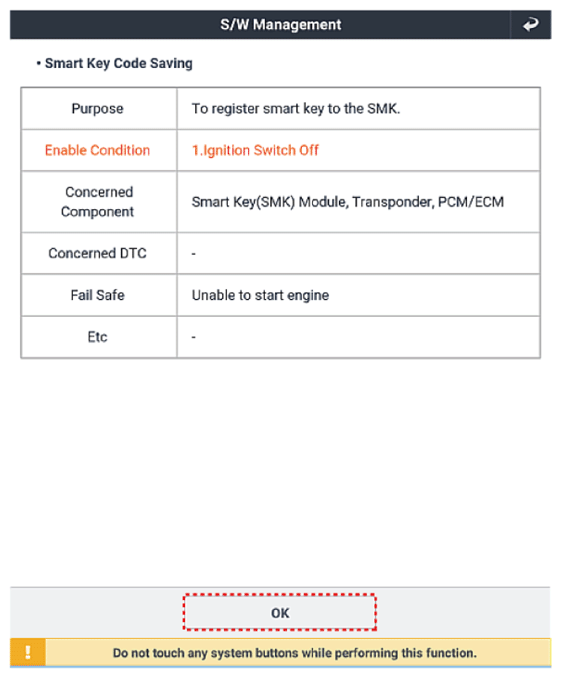

    G13417709Courtesy of KIA MOTORS AMERICA, INC.

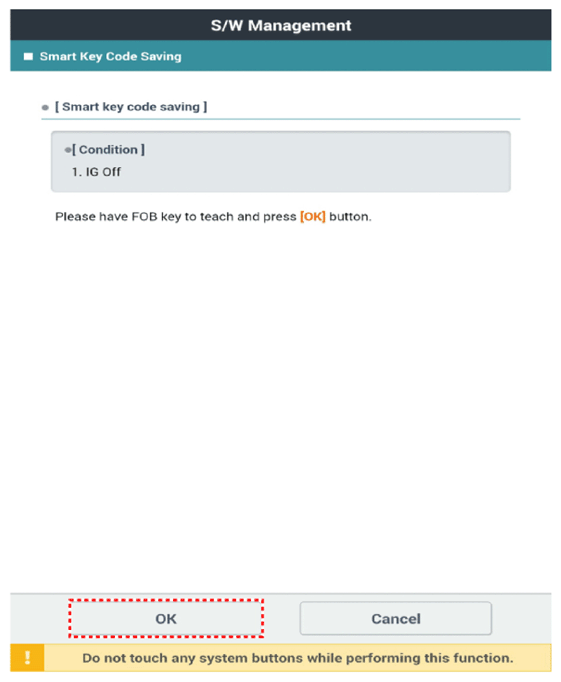

  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
    G13417710Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.
  5. Input the "Pin code" for first key teaching.

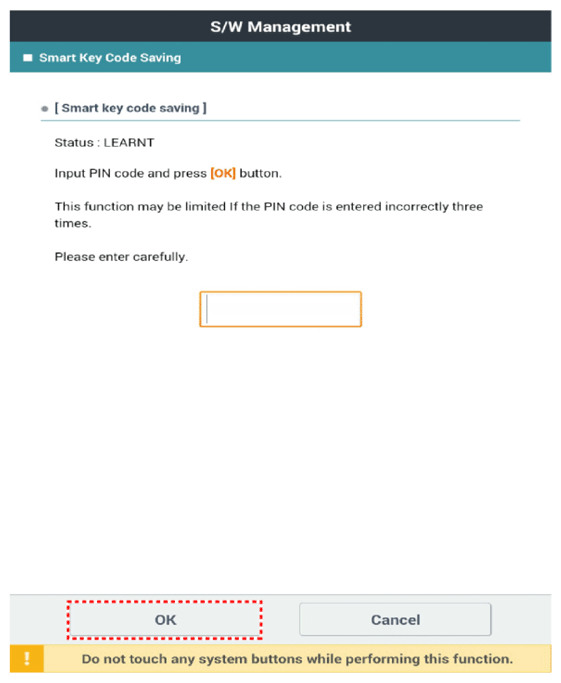

    G13417711Courtesy of KIA MOTORS AMERICA, INC.

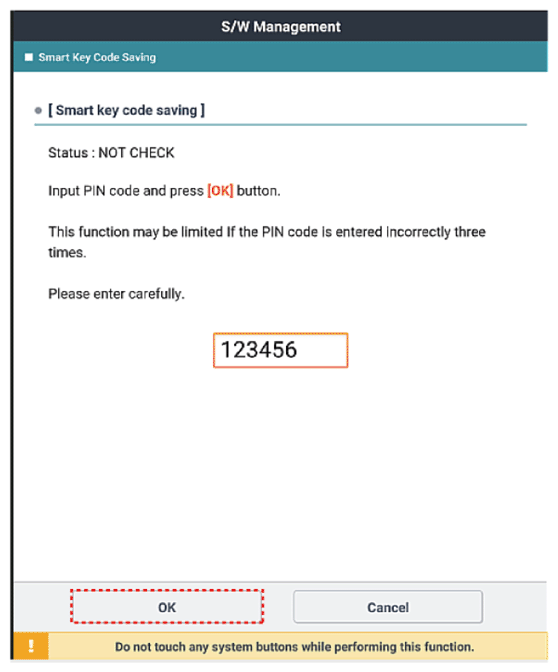

    G13417712Courtesy of KIA MOTORS AMERICA, INC.
    G13417713Courtesy of KIA MOTORS AMERICA, INC.
  6. Confirm the message "First key teaching completed".

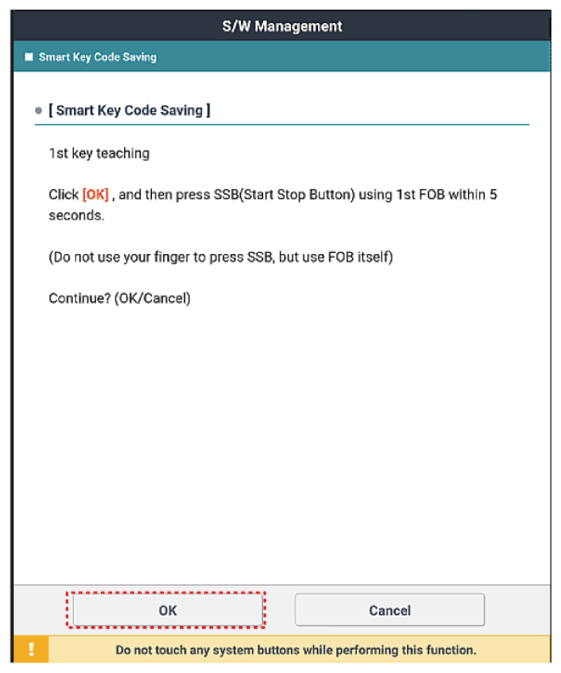

    G13417714Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".

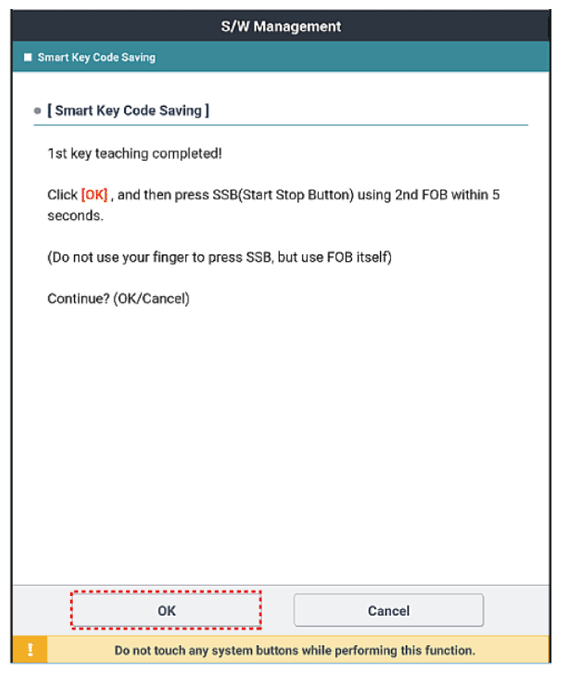

    G13417715Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".
    G13417716Courtesy of KIA MOTORS AMERICA, INC.

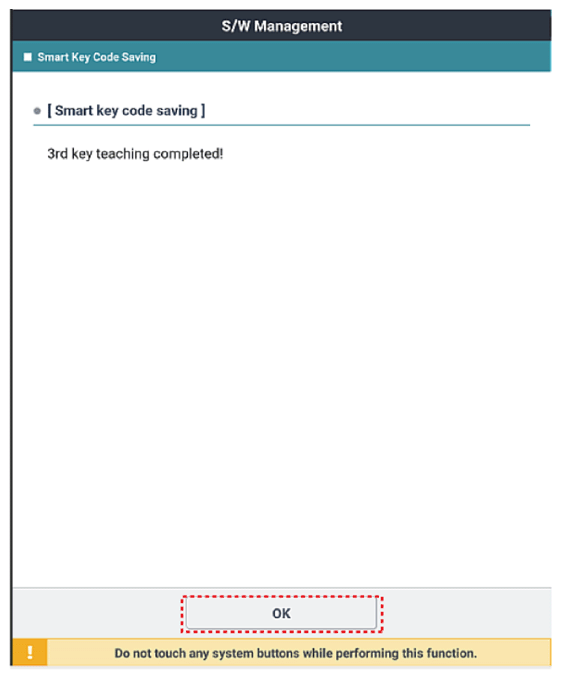

    G13417717Courtesy of KIA MOTORS AMERICA, INC.
  9. Then the screen will be shown as below when key teaching process is completed.
    G13417718Courtesy of KIA MOTORS AMERICA, INC.
