Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console lamp.

    (Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")

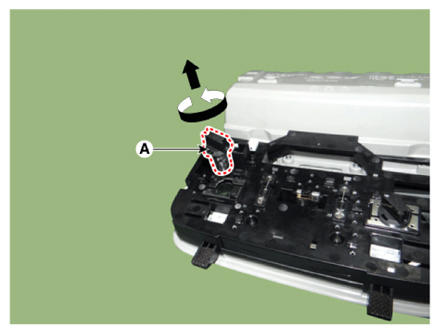

  2. Remove the socket (A) by rotating in the counterclockwise.
    G13282635Courtesy of KIA MOTORS AMERICA, INC.

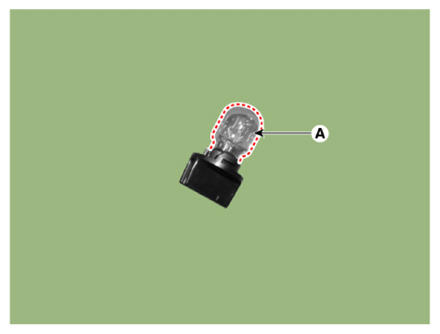

  3. Replace the overhead console lamp bulb (A).
    G13282636Courtesy of KIA MOTORS AMERICA, INC.
