Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

Information

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the front pillar trim.
(Refer to Interior Trim - "FRONT PILLAR TRIM ")
Remove the crash pad center panel.
(Refer to Crash Pad - "CRASH PAD CENTER PANEL ")
Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
Remove the steering column shroud lower panel.
(Refer to Crash Pad - "STEERING COLUMN SHROUD PANEL ")
Remove the instrument cluster.
(Refer to Body Electrical System - "INSTRUMENT CLUSTER ")
Remove the audio/AVN head unit.
(Refer to Body Electrical System - "AUDIO/AVN HEAD UNIT ")

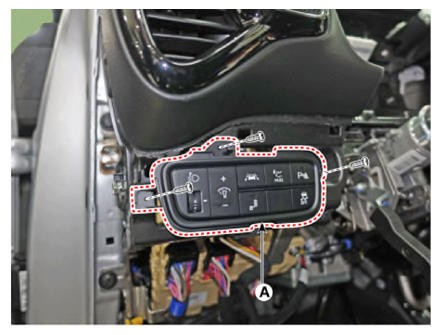

After loosening the mounting screws, remove the crash pad switch assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.

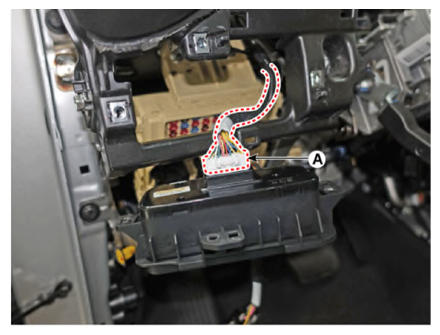

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

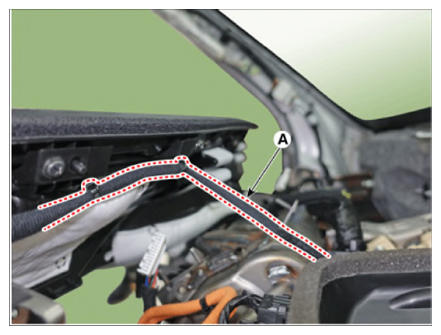

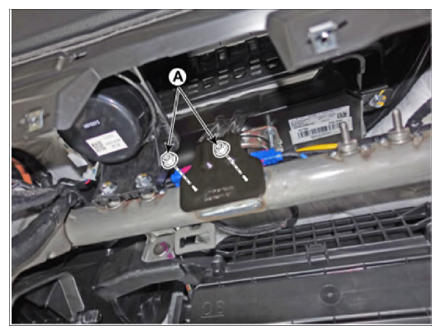

Using a screwdriver or remover, remove the instrument cluster bracket (A).

Courtesy of KIA MOTORS AMERICA, INC.

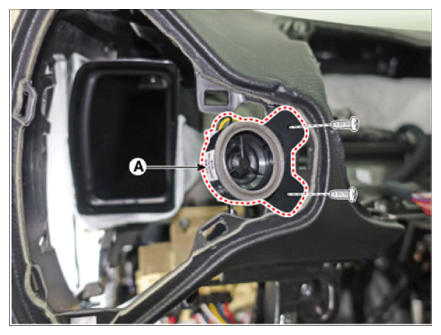

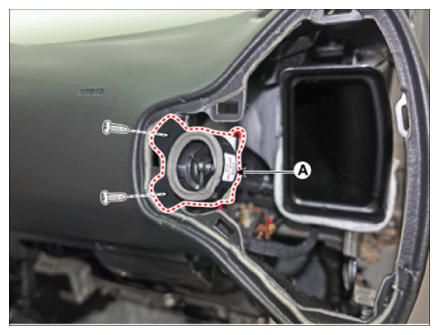

After loosening the mounting screws, remove the twitter speaker (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

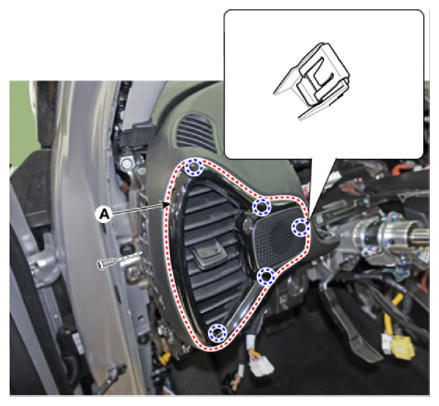

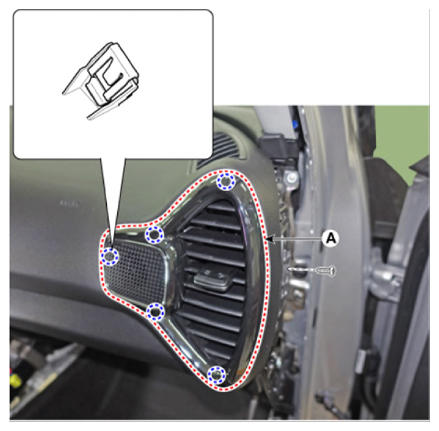

After loosening the mounting screw, remove the side airvent duct assembly (A).
[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the security lamp connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

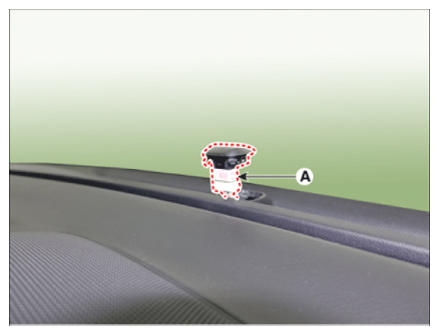

Loosen the mounting nuts (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

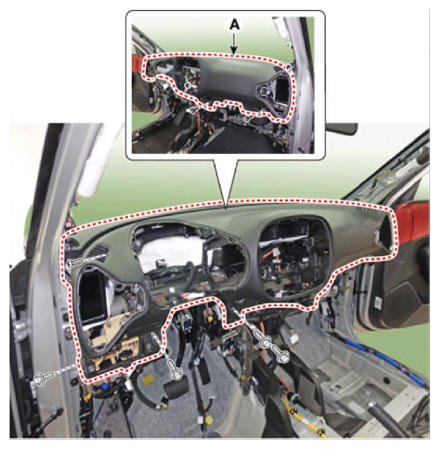

Loosen the mounting bolts and nuts and remove the main crash pad assembly (A).
Tightening torque:

16.7 - 23.5 N.m (1.7 - 2.4 Kgf.m, 12.3 - 23.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

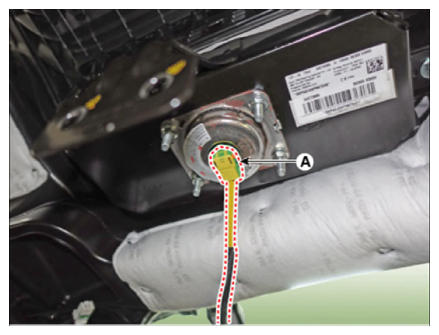

Disconnect the passenger's airbag connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

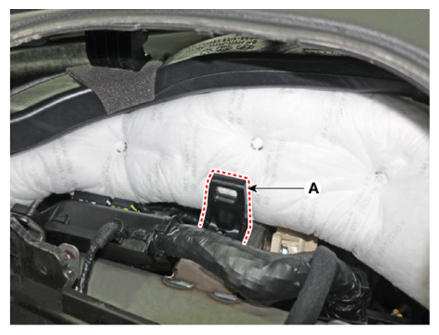

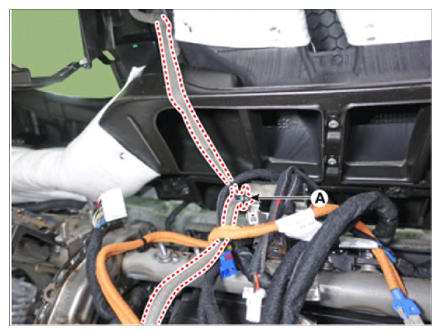

Disconnect the wiring mounting clips (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Make sure that each of the assembly components operates properly.
- Replace any damaged clips (or pin-type retainers).
