Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

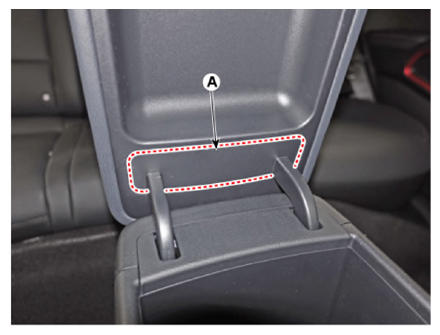

Using a screwdriver or remover, remove the console armrest cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

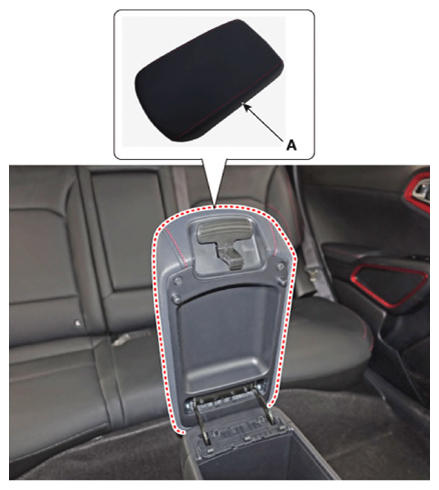

Loosen the mounting screws, remove the console armrest (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information

Replace any damaged clips (or pin-type retainers).
